Same model may have multiple batches, images only for reference.

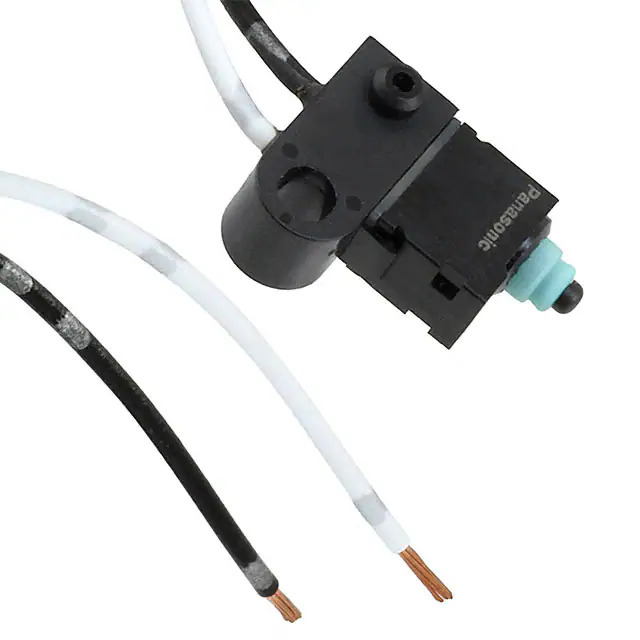

ASQM11630 Panasonic
Same model may have multiple batches, images only for reference.

ASQM11630

Part No ASQM11630
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 50MA 16V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Panasonic Electric Works
Series ASQM1
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 50mA (DC)
Voltage Rating - DC 16 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Operating Force 122gf
Release Force -
Operating Position 0.541" (13.75mm)
Pretravel -
Differential Travel -
Overtravel 0.062" (1.6mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 150,000 Cycles
Mechanical Life -
Base Product Number ASQM11
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1376168-ASQM11630
Ultra Librarian 3D Model Ultra Librarian ASQM11630 CAD Model

Description

The ASQM11630 is a limit switch from Panasonic Electric Works.

  • Circuit: SPST-NO
  • Current Rating: 50mA (DC)
  • Voltage Rating: 16VDC
  • Operating Force: 122gf
  • IP Rating: IP67
  • Actuator Type: Round Pin Plunger
  • Mounting: Wire Leads
  • Mechanical Life: 150,000 cycles
  • Electrical Life: 200,000 cycles
  • Operating Position: 0.541" (13.75mm)
  • Overtravel: 0.062" (1.6mm)
  • Status: Active
  • Series: ASQM1
  • Package: Bulk
