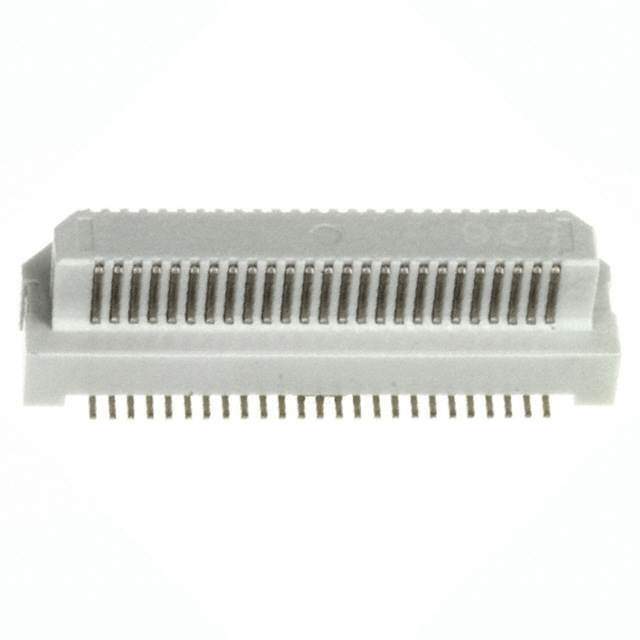

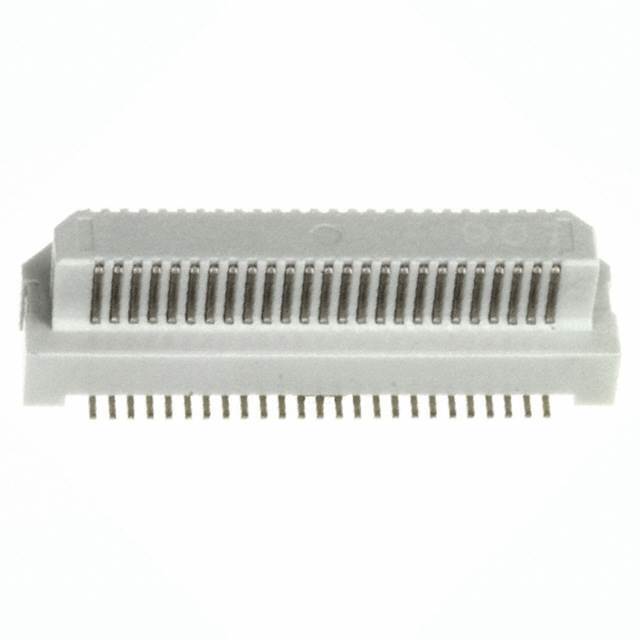

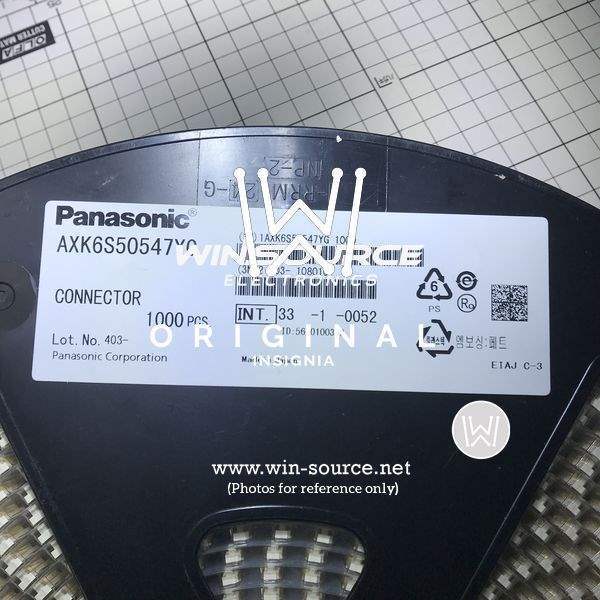

AXK6S50547YG Panasonic AXK6S50547YG Real Image AXK6S50547YG label picture
Same model may have multiple batches, images only for reference.
AXK6S50547YG Panasonic AXK6S50547YG Real Image AXK6S50547YG label picture
AXK6S50547YG Panasonic AXK6S50547YG Real Image AXK6S50547YG label picture
Same model may have multiple batches, images only for reference.

AXK6S50547YG

Part No AXK6S50547YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HEADER P5KS .5MM 50POS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 50
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Mated Stacking Heights 5mm, 5.5mm, 8mm
Height Above Board 0.169" (4.30mm)
Win Source Part Number 1020999-AXK6S50547YG
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AXK6S50547YG CAD Model

Description

Panasonic Electric Works' AXK6S50547YG is a 50-position header connector with an outer shroud contact.

  • Positions: 50
  • Contact Type: Outer Shroud
  • Pitch: 0.020" (0.50mm)
  • Mounting Type: SMD (SMT)
  • Plating: Gold-Plated
  • Height Above Board: 0.169" (4.30mm)
  • Mated Stacking Heights: 5mm, 5.5mm, and 8mm
  • Availability: Open Market
  • Package Quantity: 1k pcs
