Same model may have multiple batches, images only for reference.

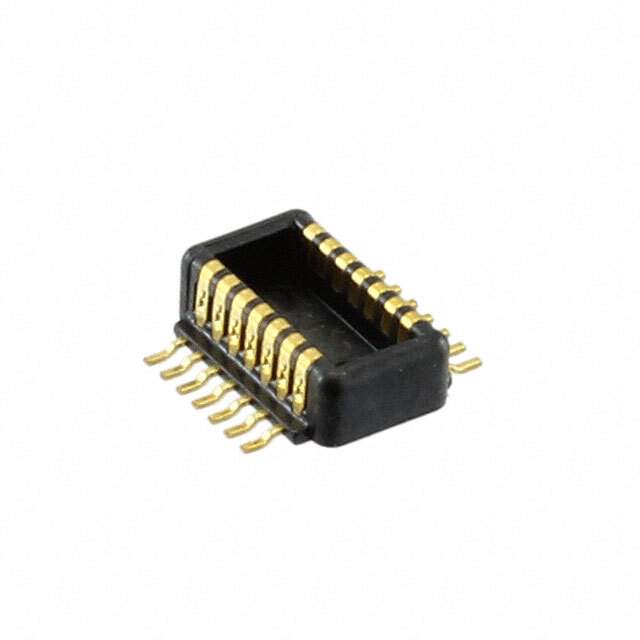

AXK814145WG Real Image
Same model may have multiple batches, images only for reference.

AXK814145WG

Part No AXK814145WG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HEADER FPC .4MM 14POS SMD
Datasheet
AXK814145WG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 14
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2mm, 2.5mm
Height Above Board 0.052" (1.32mm)
Win Source Part Number 1021046-AXK814145WG
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXK814145WG CAD Model

Description

The AXK814145WG is a header connector from Panasonic Electric Works.

  • Manufacturer: Panasonic Electric Works
  • Positions: 14
  • Pitch: 0.016" (0.40mm)
  • Contact Finish: Gold
  • Mounting: Surface Mountable
  • Series: AXK
  • Applications: power supplies, DC/DC converters, and more
  • Win Source part number: 1021046-AXK814145WG
  • Packaging: reel-TR
  • Quantity per package: 3k pcs
