Same model may have multiple batches, images only for reference.

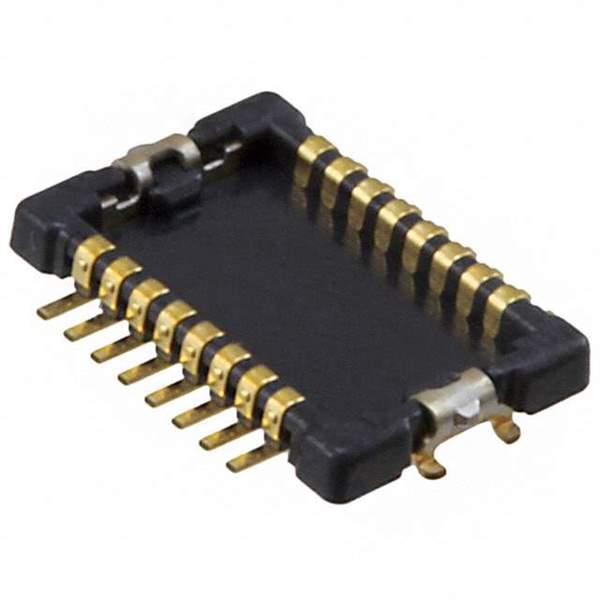

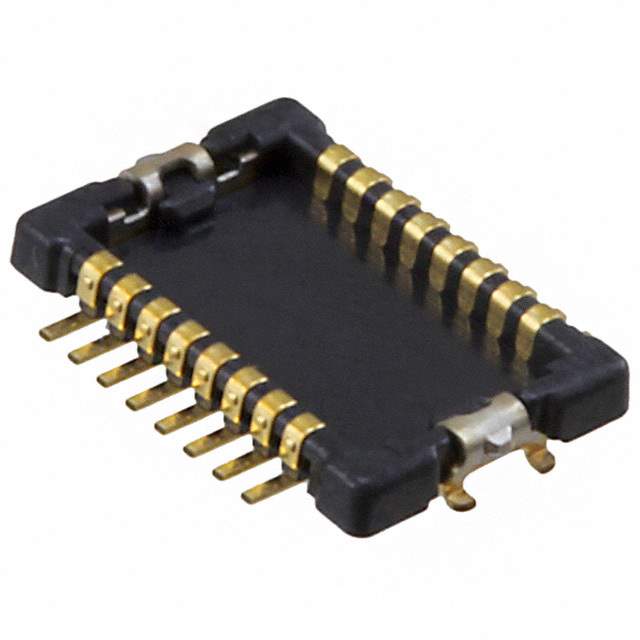

AXK8L16124BG Real Image
Same model may have multiple batches, images only for reference.

AXK8L16124BG

Part No AXK8L16124BG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HEADER FPC .4MM 16POS SMD
Datasheet
AXK8L16124BG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Header, Outer Shroud Contacts
Number of Positions 16
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.025" (0.63mm)
Win Source Part Number 1021070-AXK8L16124BG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AXK8L16124BG CAD Model

Description

The Panasonic Electric Works 1021070-AXK8L16124BG is a header connector that has 16 positions and a pitch of 0.016" (0.40mm).

  • Positions: 16
  • Pitch: 0.016" (0.40mm)
  • Contacts: Outer shroud
  • Mounting: Surface mount technology (SMT)
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand: Balance
