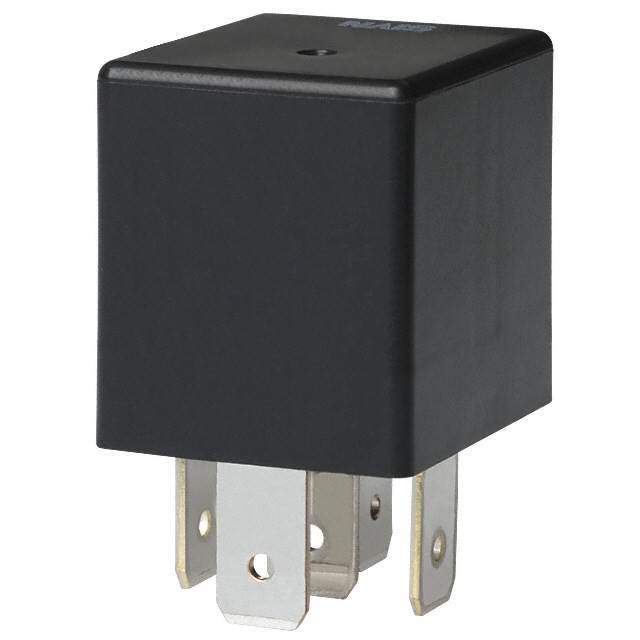

CB1A-12V Real Image
Same model may have multiple batches, images only for reference.

CB1A-12V

Part No CB1A-12V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY AUTOMOTIVE SPST 40A 12V  /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Automotive Relays
Mfr Panasonic Electric Works
Series CB
Package Bulk
Coil Type Non Latching
Coil Current 117 mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 40 A
Switching Voltage 14VDC - Nom
Must Operate Voltage 7 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 15 ms
Features Sealed - Fully
Mounting Type Socketable
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 1.4W
Coil Resistance 103 Ohms
Base Product Number CB1A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-1826,CB1A-12V-ND,CB1A12V
Standard Package 50
Win Source Part Number 1051295-CB1A-12V
Ultra Librarian 3D Model Ultra Librarian CB1A-12V CAD Model

Description

The Panasonic Electric Works electronic component is a high-quality product that is designed to provide excellent performance and durability.

  • Win Source Part Number: 1051295-CB1A-12V
  • Series: CB
  • Termination Style: Plug-in, quick connect - 0.250" (6.3mm)
  • Feature: Sealed
  • Contact Material: Silver alloy, cadmium-free
  • Application: Automotive relay applications
