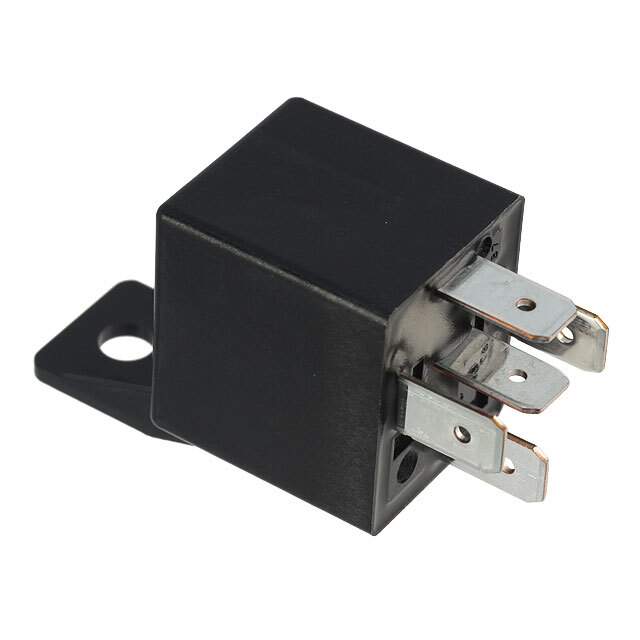

CB1F-M-12V Real Image
Same model may have multiple batches, images only for reference.

CB1F-M-12V

Part No CB1F-M-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY AUTOMOTIVE SPDT 40A 12V
Datasheet
CB1F-M-12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type Automotive
Coil Type Non Latching
Coil Current 117mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 40A
Switching Voltage 14VDC - Nom
Turn On Voltage (Max) 7 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 15ms
Release Time 15ms
Features Sealed - Flux Protection
Mounting Chassis Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Coil Power 1.4 W
Coil Resistance 103 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 050022-CB1F-M-12V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CB1F-M-12V CAD Model

Description

CB1F-M-12V Relay

The CB1F-M-12V is engineered for high-stakes applications, providing robust switching solutions with its agile and responsive design. This relay is ideal for applications requiring steady operation and reliability.

  • Applications: Medical devices, automation systems, consumer electronics, signal switching.
  • Features and Benefits:
    • 12V DC coil operation tailored for diverse electrical compatibility.
    • Quick response time boosts system efficiency and performance.
    • Enhanced durability for missions requiring sustained operation.
    • Compact footprint allowing for use in space-constrained setups.
  • Additional Details: The CB1F-M-12V relay is known for its low power consumption and high contact reliability.
