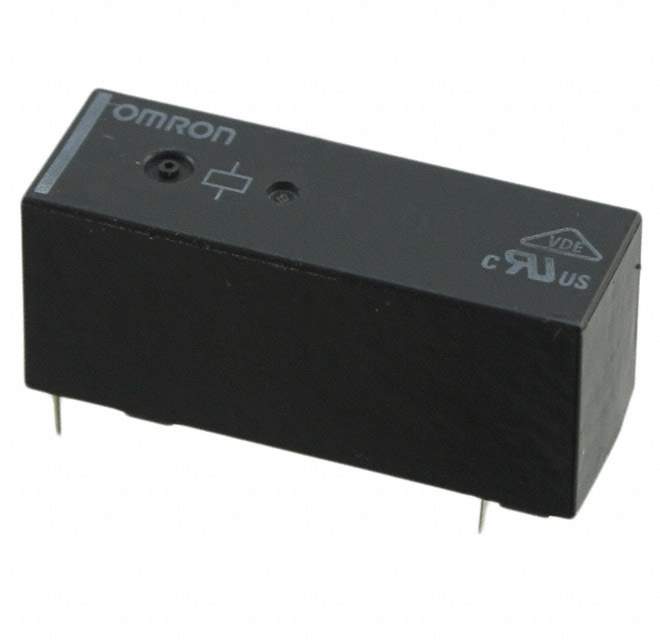

G6RL-1 DC12 Real Image
Same model may have multiple batches, images only for reference.

G6RL-1 DC12

Part No G6RL-1 DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 8A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6RL
Package Tray
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 8 A
Switching Voltage 250VAC - Nom
Coil Current 18.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 654 Ohms
Base Product Number G6RL
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Other Names G6RL-1-DC12,Z2760,G6RL1DC12,G6RL5001B,G6RL112DC
Standard Package 100
Win Source Part Number 1060355-G6RL-1 DC12
Ultra Librarian 3D Model Ultra Librarian G6RL-1 DC12 CAD Model

Description

The Omron G6RL-1 DC12 is a non-latching general-purpose relay with a contact form of SPDT (1 Form C) and a contact material of silver nickel (AgNi).

  • Relay Type: non-latching general-purpose
  • Contact Form: SPDT (1 Form C)
  • Contact Material: silver nickel (AgNi)
  • Coil Voltage: 12VDC
  • Coil Resistance: 654 Ohms
  • Contact Rating (Current): 8A
  • Switching Voltage: 250VAC
  • Termination Style: PC pin
  • Package: tray
  • Release Time: 5ms
  • Operate Time: 10ms
  • Mounting Type: through hole
  • Temperature Range: -40°C ~ 85°C
