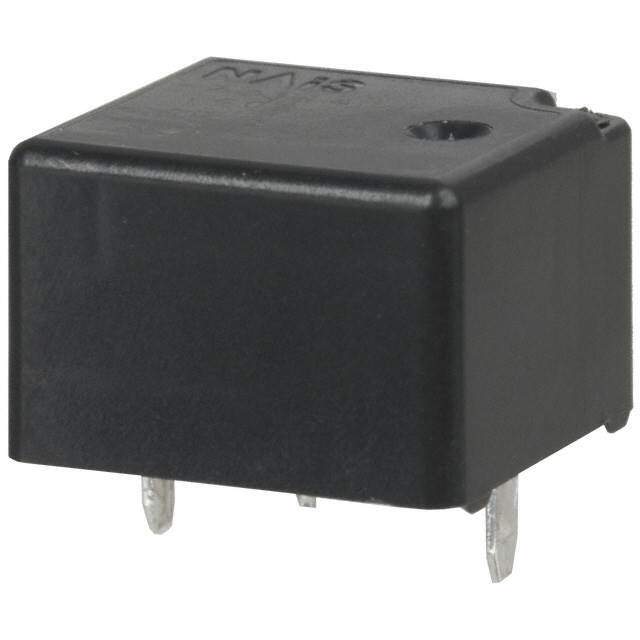

CP1A-12V Real Image CP1A-12V real image3040
Same model may have multiple batches, images only for reference.
CP1A-12V Real Image CP1A-12V real image3040
CP1A-12V Real Image CP1A-12V real image3040
Same model may have multiple batches, images only for reference.

CP1A-12V

Part No CP1A-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY AUTOMOTIVE SPST 20A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type Automotive
Coil Type Non Latching
Coil Current 53.3mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20A
Switching Voltage 14VDC - Nom
Turn On Voltage (Max) 7.2 VDC
Turn Off Voltage (Min) 1 VDC
Operate Time 10ms
Release Time 10ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 640 mW
Coil Resistance 225 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 050427-CP1A-12V
Popularity Medium
Supply and Demand Status Balance
Quantity per package 40
Ultra Librarian 3D Model Ultra Librarian CP1A-12V CAD Model

Description

CP1A-12V: Reliable and Durable

The CP1A-12V is specifically engineered to provide reliability and durability for projects that require a steady 12V power supply.

Applications:
  • Solar Power Systems
  • Automotive Power Supply
  • Battery Chargers
  • Portable Electronics
Features and Benefits:
  • Stable Power: Ensures a constant and reliable supply of 12V power.
  • Robust Design: Built to withstand harsh environmental conditions.
  • Energy Efficient: Maximizes output while minimizing power consumption.

The CP1A-12V is the perfect solution for applications demanding steadfast and efficient power supply, even in challenging conditions.
