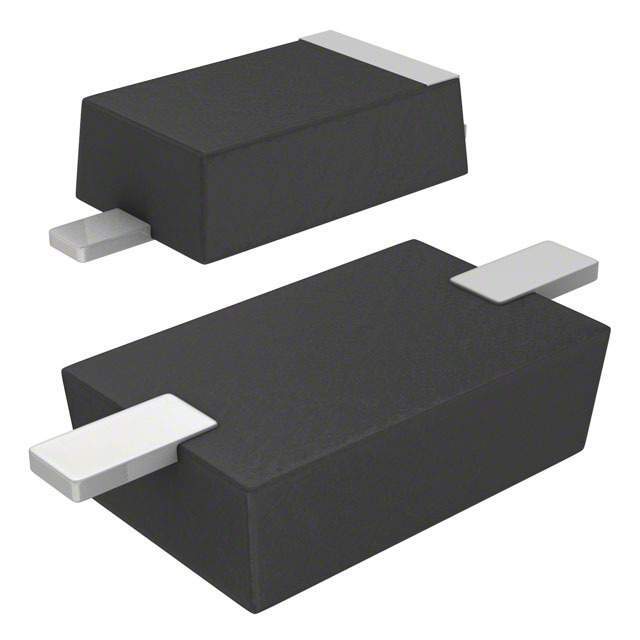

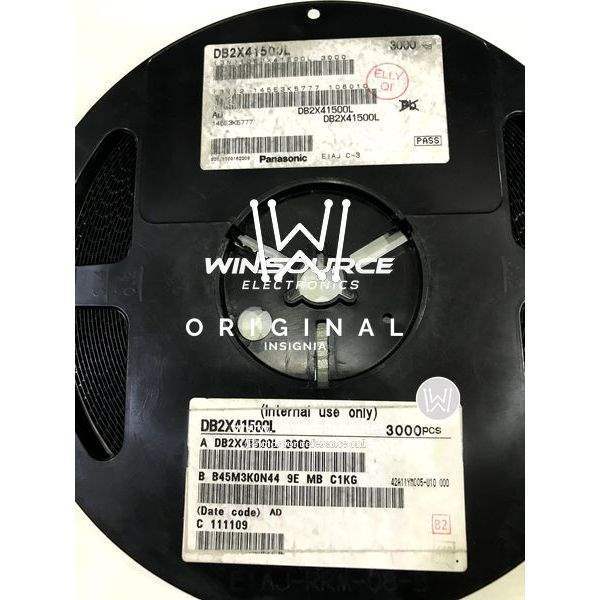

DB2X41500L Panasonic DB2X41500L Real Image DB2X41500L label picture 2 DB2X41500L real image
Same model may have multiple batches, images only for reference.
DB2X41500L Panasonic DB2X41500L Real Image DB2X41500L label picture 2 DB2X41500L real image
DB2X41500L Panasonic DB2X41500L Real Image DB2X41500L label picture 2 DB2X41500L real image
Same model may have multiple batches, images only for reference.

DB2X41500L

Part No DB2X41500L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 3A MINI2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 550mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 25ns
Current - Reverse Leakage @ Vr 200μA @ 40V
Capacitance @ Vr, F 70pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package Mini2-F4-B
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 013818-DB2X41500L
Family Name DB2X415
Introduction Date March 16, 2010
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian DB2X41500L CAD Model

Description

DB2X41500L

The DB2X41500L is a sophisticated electronic component tailored for cutting-edge technology solutions. It is widely recognized for its adaptability and robust performance in numerous applications.

Applications and Projects

  • Smart home devices
  • Energy-efficient lighting solutions
  • Medical instrumentation
  • Digital signage

Features and Benefits

  • Seamless integration into existing systems
  • Prolonged operational lifecycle
  • Efficient thermal dissipation
  • Compact form factor

The DB2X41500L's design emphasis on performance and efficiency makes it an invaluable component for projects requiring high precision and reliability.
