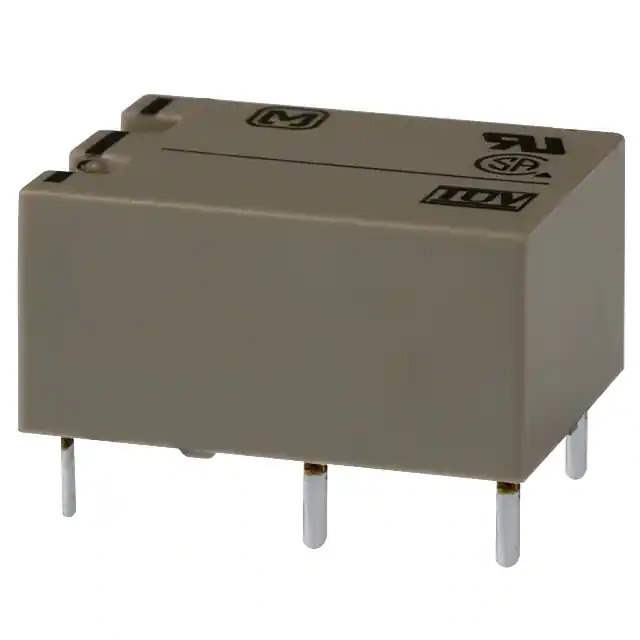

DK1A-L2-3V Real Image
Same model may have multiple batches, images only for reference.

DK1A-L2-3V

Part No DK1A-L2-3V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 3V / General Purpose Relay SPST-NO (1 Form A) 3VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DK
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 3VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 66.7 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 2.1 VDC
Operate Time 10 ms
Release Time 8 ms
Temperature Range - Operating -40°C ~ 65°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 45 Ohms
Base Product Number DK1A
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 868798-DK1A-L2-3V
Ultra Librarian 3D Model Ultra Librarian DK1A-L2-3V CAD Model

Description

The DK series power relay, with part number 868798-DK1A-L2-3V, is a high-quality electronic component designed for power switching applications.

  • Termination Style: PC Pin
  • Contact Form: SPST-NO
  • Coil Voltage: 3V DC
  • Coil Resistance: 45 Ohms
  • Contact Rating: 10A
  • Switching Voltage: 250V AC/125V DC
  • Design: Sealed Fully
  • Operating Temperature: -40°C to 65°C
  • Manufacturer: Panasonic
