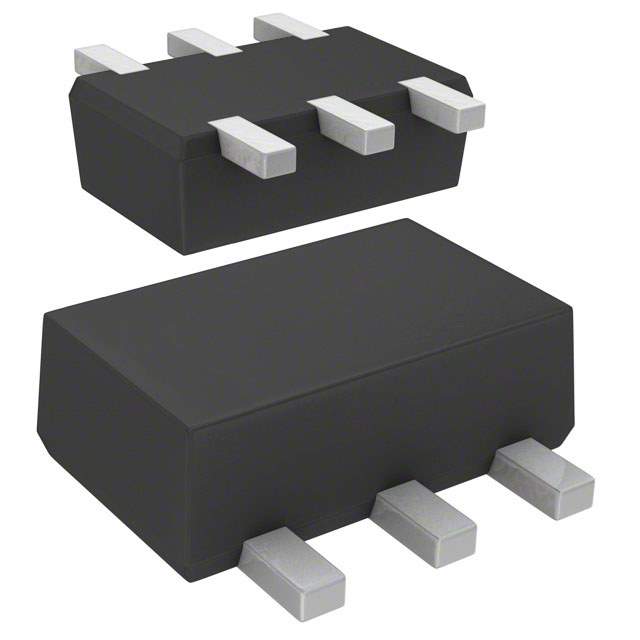

DMC564020R Real Image
Same model may have multiple batches, images only for reference.

DMC564020R

Part No DMC564020R
Manufacturer Panasonic
Catalog Transistors (BJT) - Arrays, Pre - Biased
Description TRANS 2NPN PREBIAS 0.15W SMINI6 / Pre-Biased Bipolar Transistor (BJT) 2 NPN - Pre-Biased (Dual) 50V 100mA 150mW Surface Mount SMini6-F3-B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Transistor Type 2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max) 100mA
Voltage - Collector Emitter Breakdown (Max) 50V
Resistor - Base (R1) 22kOhms
Resistor - Emitter Base (R2) 22kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce 60 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic 250mV @ 500µA, 10mA
Current - Collector Cutoff (Max) 500µA
Power - Max 150mW
Mounting Surface Mount
Case / Package 6-SMD, Flat Leads
Supplier Device Package SMini6-F3-B
Base Product Number DMC564
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.21.0095
Standard Package 3,000
Win Source Part Number 1325025-DMC564020R
Ultra Librarian 3D Model Ultra Librarian DMC564020R CAD Model

Description

The DMC564020R from Panasonic Electronic Components is a surface mount bipolar transistor array.

  • Transistor Type: Pre-biased with two NPN transistors
  • Maximum Power: 150mW
  • Voltage Breakdown (Collector to Emitter): 50V
  • Maximum Collector Current: 100mA
  • Package: Reel
  • Standard Package: 3,000
  • Package Type: SMini6-F3-B with 6-SMD flat leads
  • Vce Saturation: 250mV @ 500μA and 10mA
  • DC Current Gain: 60 @ 5mA and 10V
  • Current Cutoff: 500μA
  • Base Resistor (R1): 22kOhms
  • Emitter-Base Resistor (R2): 22kOhms
  • RoHS Compliant: Yes
