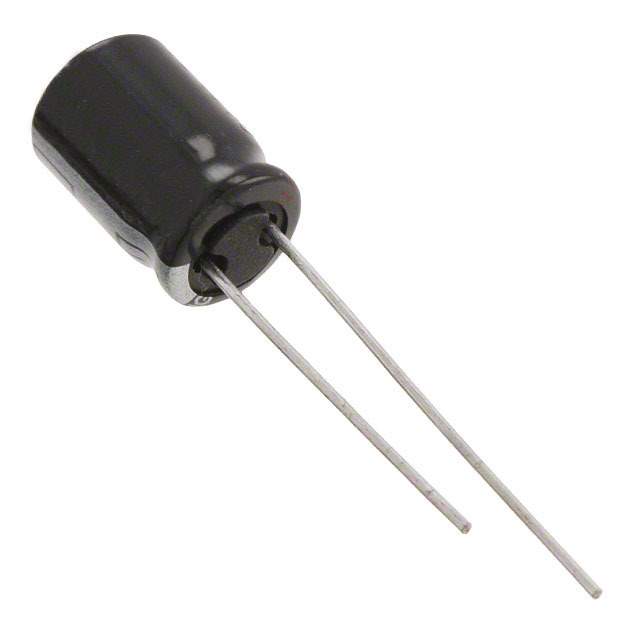

Same model may have multiple batches, images only for reference.

ECA-1HHG101B

Name: ECA-1HHG101B
Brand: Panasonic
SKU: 991687
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ECA-1HHG101B
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 50V RADIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	NHG-A
Package	Cut Tape (CT),Tape & Box (TB)
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	180 mA @ 120 Hz
Ripple Current @ High Frequency	270 mA @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	ECA-1HH
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	P19446TB,P19446-ND,P19446CT,ECA-1HHG101B-ND,ECA1HHG101B,Q3204813,Q1149303E,149303E,P19446
Standard Package	1,000
Win Source Part Number	991687-ECA-1HHG101B
Ultra Librarian 3D Model	Ultra Librarian ECA-1HHG101B CAD Model

Alternative Products

Description

The Panasonic Electronic Components ECA-1HHG101B is a capacitor that belongs to the aluminum electrolytic capacitors category.

Capacitance: 100 µF
Tolerance: ±20%
Voltage Rating: 50V
Lifetime @ Temp: 1000 Hrs @ 105°C
Polarization: Polarized
Package/Case: Radial, Can
Operating Temperature: -55°C ~ 105°C
Series: NHG-A
Application: General Purpose
