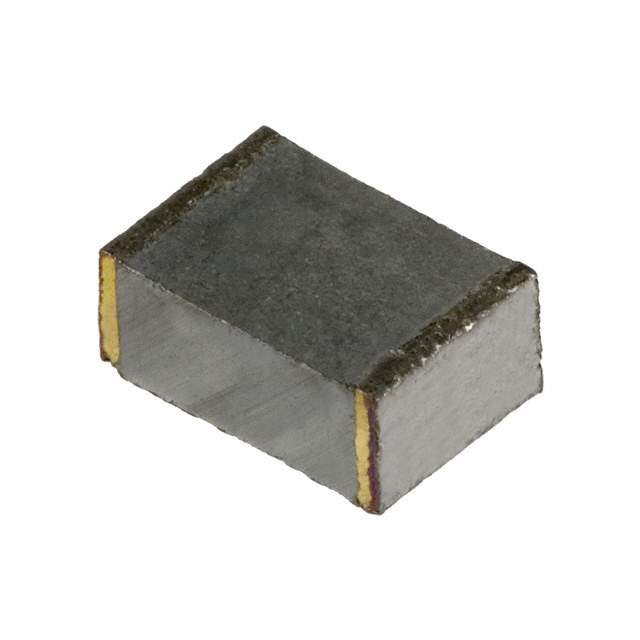

The ECW-U2223V16 is a metallized polypropylene film capacitor from Panasonic. These capacitors are known for their stability, low loss, and high reliability, making them suitable for a variety of applications where performance is critical.

Applications

• Power supply circuits
• Snubber circuits
• DC link circuits
• Lighting ballast circuits
• High-frequency filtering

Features

• Capacitance: 0.022uF (22nF)
• Voltage Rating: Typically rated for high voltage applications. (Check the datasheet for the specific voltage rating)
• Tolerance: Commonly available with a tolerance of ±5% or ±10%
• Operating Temperature Range: -40°C to +105°C (Refer to the specific datasheet for precise operating temperatures.)
• Dielectric Material: Metallized Polypropylene Film
• Construction: Non-inductive construction for high-frequency performance
• Self-Healing Property: Allows for clearing of small short circuits within the dielectric, extending the capacitor's lifespan.
• Low Dissipation Factor (Tan δ): Minimizes energy loss, increasing overall efficiency.

Benefits

• High Reliability: Metallized polypropylene film ensures long-term stability and reliability.
• Low Losses: Minimizes energy dissipation, leading to improved efficiency.
• Stable Performance: Provides consistent performance over a wide range of temperatures and frequencies.
• Self-Healing: Enhances the lifespan of the capacitor.
• High Voltage Capability: Suitable for applications requiring high voltage ratings.

Additional Details

The ECW-U2223V16 capacitor uses a metallized polypropylene film as its dielectric. This material provides excellent electrical characteristics, including high insulation resistance and low dissipation factor. The self-healing property of the metallized film helps to prevent catastrophic failures and extends the capacitor's operating life. The non-inductive construction makes it suitable for high-frequency applications. When selecting this capacitor, it is essential to consider the voltage, current, and temperature requirements of the specific application. Refer to the Panasonic datasheet for detailed specifications, including voltage rating, dissipation factor, insulation resistance, and temperature derating curves. Ensure proper mounting and soldering techniques are followed to prevent damage and ensure a reliable connection. Polypropylene film capacitors are preferred in applications requiring stability and long life. Always observe safety margins when designing circuits with high-voltage components.
