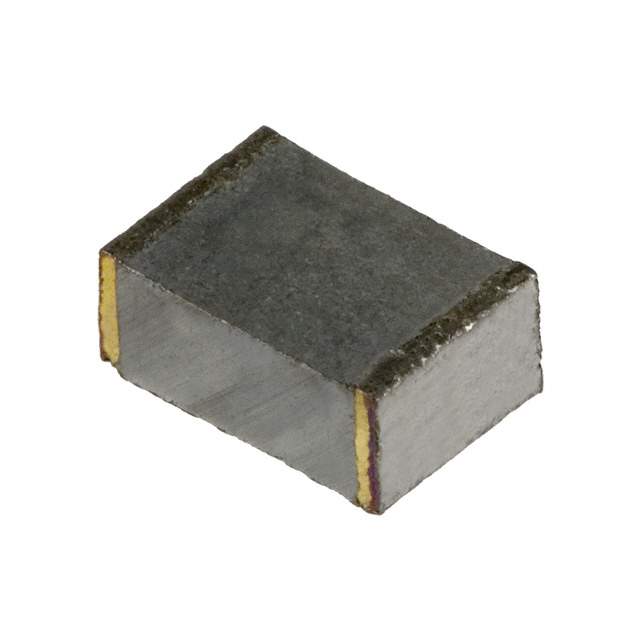

The ECWU4103V17 is a metallized polypropylene film capacitor manufactured by Panasonic. This component is designed for applications requiring high stability, low loss, and high reliability. Its robust construction and excellent electrical characteristics make it suitable for demanding environments.

Applications

• Snubber circuits in power supplies
• DC-link capacitors in inverters
• High-frequency filtering
• Resonant circuits
• Lighting ballasts

Features

• Capacitance: 0.01uF (10nF)
• Voltage Rating: High voltage rating (Consult the specific datasheet for the exact voltage)
• Tolerance: Commonly available with ±5% or ±10% tolerance.
• Operating Temperature Range: Typically -40°C to +105°C. Refer to the datasheet for the precise temperature range.
• Dielectric Material: Metallized Polypropylene Film
• Construction: Non-inductive winding for high-frequency performance.
• Self-Healing Properties: Ability to recover from minor voltage breakdowns, extending the lifespan.
• Low Dissipation Factor (Tan δ): Minimizes energy loss, improving efficiency.

Benefits

• High Reliability: Metallized polypropylene film offers excellent long-term stability.
• Low Losses: Minimizes energy dissipation, leading to improved efficiency in power circuits.
• Stable Performance: Provides consistent performance across a wide range of frequencies and temperatures.
• Self-Healing: Enhances the lifespan and reliability of the capacitor.
• High Voltage Capability: Suitable for high-voltage applications.

Additional Details

The ECWU4103V17 capacitor utilizes metallized polypropylene film, providing excellent electrical characteristics, including high insulation resistance and a low dissipation factor. Its self-healing property ensures enhanced reliability, preventing catastrophic failures due to voltage spikes. The non-inductive construction makes it well-suited for high-frequency applications. When selecting this capacitor, carefully consider the voltage, current, and temperature requirements of the application. Refer to the Panasonic datasheet for detailed specifications, including voltage rating, dissipation factor, insulation resistance, and temperature derating curves. Employ proper mounting and soldering techniques to ensure a reliable electrical connection and prevent damage to the capacitor. Polypropylene film capacitors are often favored for their stability and longevity in demanding applications. Always maintain appropriate safety margins when designing circuits with high-voltage components.
