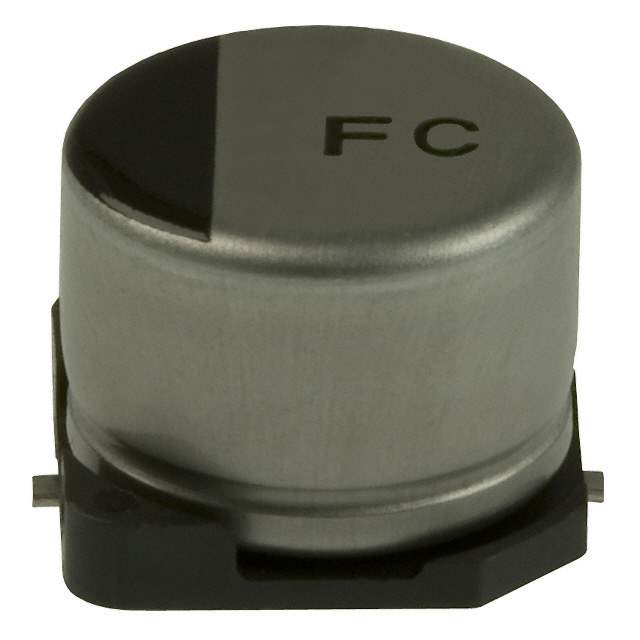

EEE-FC1C101P Real Image
Same model may have multiple batches, images only for reference.

EEE-FC1C101P

Part No EEE-FC1C101P
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 16V SMD / 100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FC
Package Tape & Reel
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 172.5 mA @ 120 Hz
Ripple Current @ High Frequency 230 mA @ 100 kHz
Impedance 400 mOhms
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.244" (6.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-FC
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338937-EEE-FC1C101P
Ultra Librarian 3D Model Ultra Librarian EEE-FC1C101P CAD Model

Description

This aluminum electrolytic capacitor from Panasonic Electronic Components is designed for automotive applications.

  • Mfr: Panasonic Electronic Components
  • Series: EEE-FC
  • Application: Automotive
  • Capacitance: 100 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Impedance: 400 mOhms
  • Ripple Current (Low Frequency): 172.5 mA
  • Ripple Current (High Frequency): 230 mA
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Temperature Range: -40°C ~ 105°C
  • Lifetime: 1000 hours @ 105°C
  • Polarization: Polarized
  • AEC-Q200: Yes
