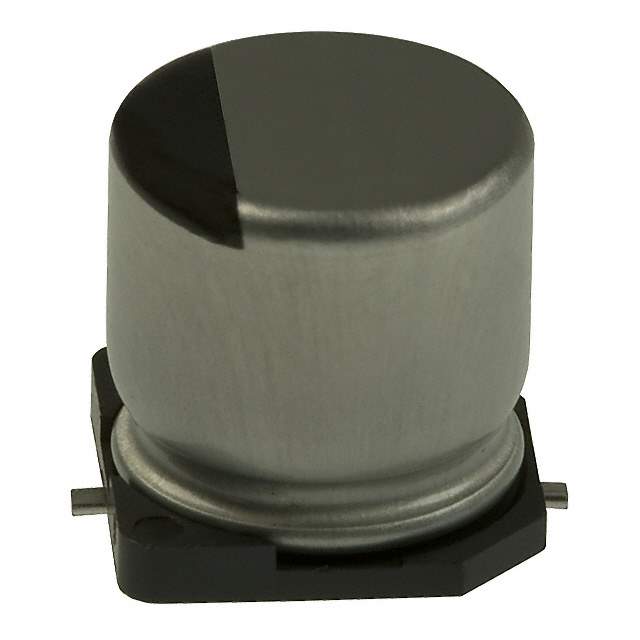

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 2.2 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 16 mA @ 120 Hz
Ripple Current @ High Frequency 27.2 mA @ 10 kHz
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-HA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number PCE4672TR,PCE4672DKR,PCE4672CT,EEEHA1H2R2AR
Standard Package 2,000
Win Source Part Number 1330126-EEE-HA1H2R2AR
Ultra Librarian 3D Model Ultra Librarian EEE-HA1H2R2AR CAD Model

Description

The EEE-HA1H2R2AR is an aluminum electrolytic capacitor from Panasonic Electronic Components.

  • Manufacturer: Panasonic Electronic Components
  • Type: Automotive
  • Capacitance: 2.2 µF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Lifetime: 1000 Hrs @ 105°C
  • Mounting: Surface Mount
  • Packaging: Reel
  • Size: 0.157" Dia (4.00mm)
  • Height: 0.213" (5.40mm)
  • Temperature Range: -40°C to 105°C
  • Polarized: Yes
  • Case/Package: Radial, Can - SMD
  • Compliance: RoHS
  • ECCN: EAR99
