Same model may have multiple batches, images only for reference.

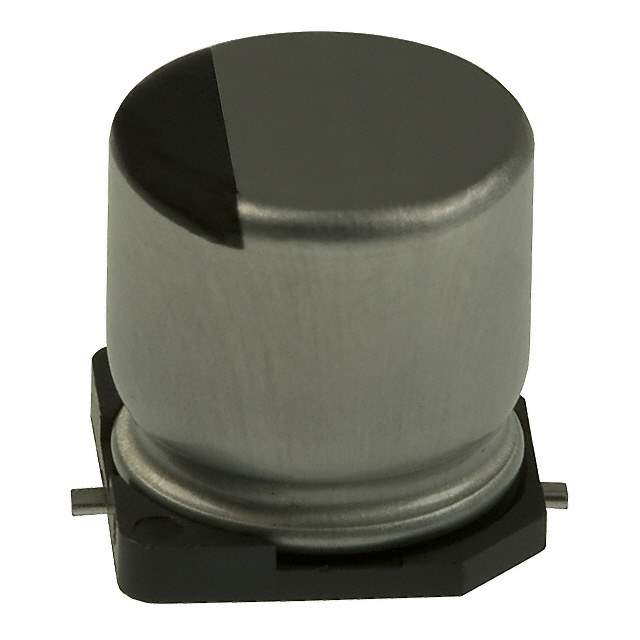

EEE-HA1J100P Real Image
Same model may have multiple batches, images only for reference.

EEE-HA1J100P

Part No EEE-HA1J100P
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 63V SMD / 10 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series HA
Package Tape & Reel
Product Status Not For New Designs
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 25 mA @ 120 Hz
Ripple Current @ High Frequency 42.5 mA @ 10 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.244" (6.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-HA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340719-EEE-HA1J100P
Ultra Librarian 3D Model Ultra Librarian EEE-HA1J100P CAD Model

Description

The EEE-HA1J100P is an aluminum electrolytic capacitor with a capacitance of 10µF and a voltage rating of 63V.

  • Capacitance: 10µF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • Package: Tape and Reel
  • Series: HA
  • Automotive: Yes
  • Diameter: 0.315" (8.00mm)
  • Height: 0.244" (6.20mm)
  • Standard Package: 1,000
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Lifetime: 1000 Hours @ 105°C
  • Polarization: Polarized
  • Ripple Current: 25 mA @ 120 Hz
  • Ripple Current: 42.5 mA @ 10 kHz
  • Package Type: Radial, Can - SMD
  • AEC-Q200: Yes
  • ECCN: EAR99
