Same model may have multiple batches, images only for reference.

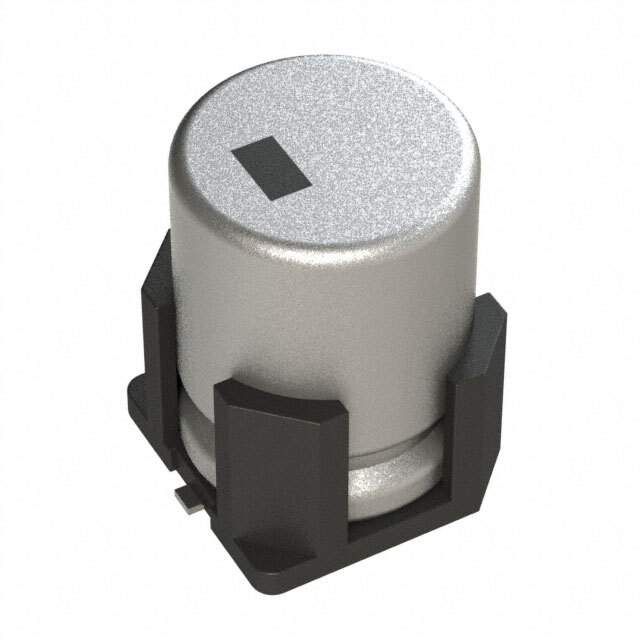

EEE-TQV101XAV Real Image
Same model may have multiple batches, images only for reference.

EEE-TQV101XAV

Part No EEE-TQV101XAV
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 35V SMD / 100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 300mOhm @ 100kHz 2000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series TQ, Anti-Vibration
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 300mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, High Temperature Reflow
Ripple Current @ Low Frequency 128.05 mA @ 120 Hz
Ripple Current @ High Frequency 197 mA @ 100 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.327" (8.30mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-TQV
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1349394-EEE-TQV101XAV
Ultra Librarian 3D Model Ultra Librarian EEE-TQV101XAV CAD Model

Description

The Panasonic Electronic Components EEE-TQV101XAV is a high-quality aluminum electrolytic capacitor designed for use in automotive and high-temperature reflow applications.

  • Capacitance: 100 µF
  • Voltage - Rated: 35 V
  • ESR (Equivalent Series Resistance): 300mOhm @ 100kHz
  • Series: TQ, Anti-Vibration
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.248" Dia (6.30mm)
  • Height - Seated (Max): 0.327" (8.30mm)
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Operating Temperature: -40°C ~ 125°C
  • Lifetime @ Temp.: 2000 Hrs @ 125°C
  • Rating: AEC-Q200
