Same model may have multiple batches, images only for reference.

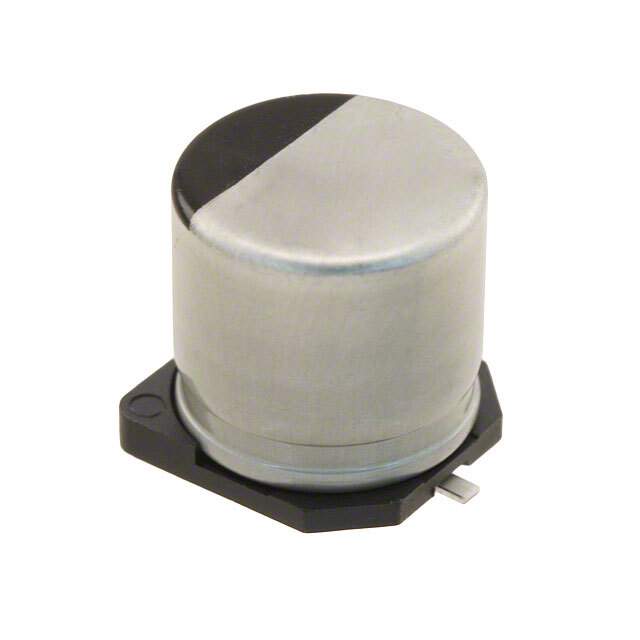

EEH-ZA1V220R Real Image
Same model may have multiple batches, images only for reference.

EEH-ZA1V220R

Part No EEH-ZA1V220R
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 22UF 35V SMD  /  22 µF 35 V Aluminum - Polymer Capacitors Radial, Can - SMD 100mOhm 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series ZA
Package Tape & Reel
Type Hybrid
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 100mOhm
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 90 mA @ 100 Hz
Ripple Current @ High Frequency 900 mA @ 100 kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEH-ZA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names EEHZA1V220R,P15451CT,P15451DKR,P15451TR
Standard Package 1,000
Win Source Part Number 996596-EEH-ZA1V220R
Ultra Librarian 3D Model Ultra Librarian EEH-ZA1V220R CAD Model

Description

The Panasonic Electronic Components' 996596-EEH-ZA1V220R is a hybrid type aluminum-polymer capacitor.

  • Capacitance: 22 µF
  • Voltage Rating: 35 V
  • AEC-Q200 Rated: Yes
  • Tolerance: ±20%
  • ESR: 100mOhm
  • Ripple Current: 90 mA @ 100 Hz and 900 mA @ 100 kHz
  • Lifetime: 10000 Hrs @ 105°C
  • Package/Case: radial, can-SMD
  • Dimensions: 0.197" Dia (5.00mm)
  • Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
