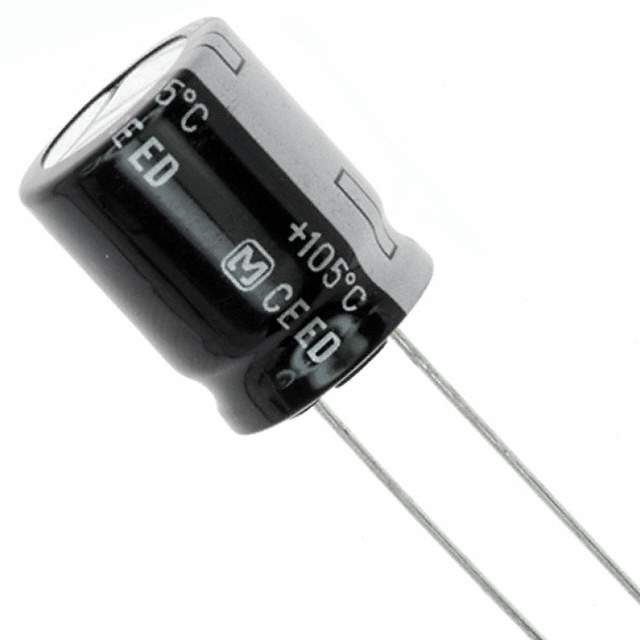

Same model may have multiple batches, images only for reference.

EEU-ED2W220S

Name: EEU-ED2W220S
Brand: Panasonic
SKU: 450889
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEU-ED2W220S
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 450V RADIAL
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Bulk
Status	Active
Capacitance	22μF
Tolerance	±20%
Voltage Rating	450V
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-25°C to 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current - Low Frequency	272mA @ 120Hz
Ripple Current - High Frequency	680mA @ 100kHz
Lead Spacing	0.295" (7.50mm)
Height - Seated (Max)	0.787" (20.00mm)
Mounting	Through Hole
Dimension	Radial, Can
Win Source Part Number	1035889-EEU-ED2W220S
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	100
Ultra Librarian 3D Model	Ultra Librarian EEU-ED2W220S CAD Model

Description

The Panasonic Electronic Components EEU-ED2W220S capacitor has a voltage rating of 450V and a capacitance of 22μF with a tolerance of ±20%.

Mounting Type: Through-hole
Dimension: Radial, can
Ripple Current (Low Frequency): 272mA @ 120Hz
Ripple Current (High Frequency): 680mA @ 100kHz
Popularity: Medium
Lifetime: 10000 hours @ 105°C
