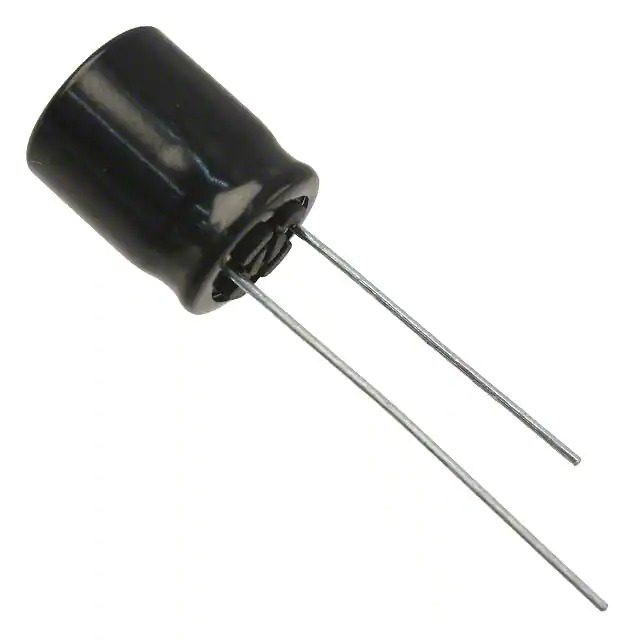

EEU-FR1J101B Panasonic
Same model may have multiple batches, images only for reference.

EEU-FR1J101B

Part No EEU-FR1J101B
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 63V RADIAL / 100 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FR-A
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 6000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 532.7 mA @ 120 Hz
Ripple Current @ High Frequency 761 mA @ 100 kHz
Impedance 63 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number EEU-FR
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358223-EEU-FR1J101B
Ultra Librarian 3D Model Ultra Librarian EEU-FR1J101B CAD Model

Description

The 1358223-EEU-FR1J101B is an aluminum electrolytic capacitor from Panasonic Electronic Components.

  • Series: FR-A
  • Capacitance: 100 μF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Polarization: Polar
  • Application: General Purpose
  • Ripple Current (Low Frequency): 532.7 mA @ 120 Hz
  • Ripple Current (High Frequency): 761 mA @ 100 kHz
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.197"
  • Size: 0.394" (Diameter), 0.551" (Height)
  • Lifetime: 6000 hours @ 105°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Product Status: Active
