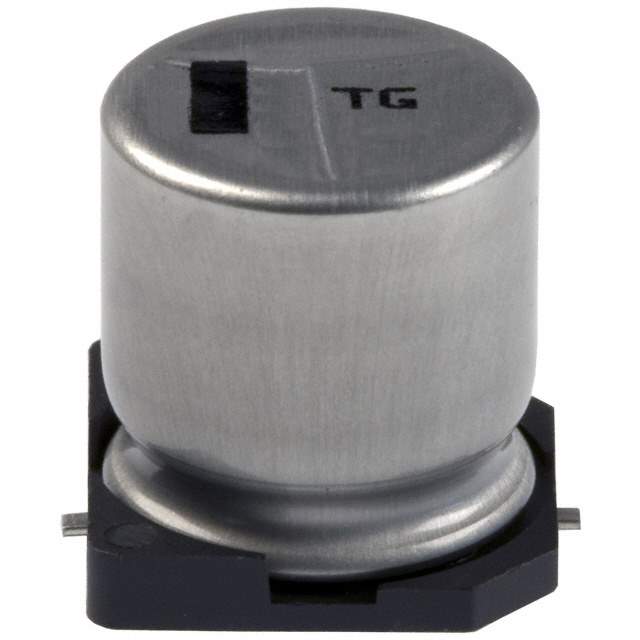

Same model may have multiple batches, images only for reference.

EEV-TG1C471Q

Name: EEV-TG1C471Q
Brand: Panasonic
SKU: 1351033
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	EEV-TG1C471Q
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 16V SMD / 470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 120mOhm @ 100kHz 2000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	TG
Package	Tape & Reel
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	120mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 125°C
Temperature Range - Operating	-40°C ~ 125°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	520 mA @ 120 Hz
Ripple Current @ High Frequency	800 mA @ 100 kHz
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.531" (13.50mm)
Surface Mount Land Size	0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEV-TG
Standard Package	200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1351033-EEV-TG1C471Q
Ultra Librarian 3D Model	Ultra Librarian EEV-TG1C471Q CAD Model

Alternative Products

Description

The Panasonic Electronic Components EEV-TG1C471Q is an aluminum electrolytic capacitor that is designed for use in automotive applications.

Capacitance: 470 µF
Voltage Rating: 16 V
Tolerance: ±20%
Surface Mount Land Size: 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type: Surface Mount
ESR: 120mOhm @ 100kHz
Lifetime @ Temp: 2000 Hrs @ 125°C
Polarization: Polarized
Package: Radial, Can - SMD
Operating Temperature: -40°C ~ 125°C
Rating: AEC-Q200
