Same model may have multiple batches, images only for reference.

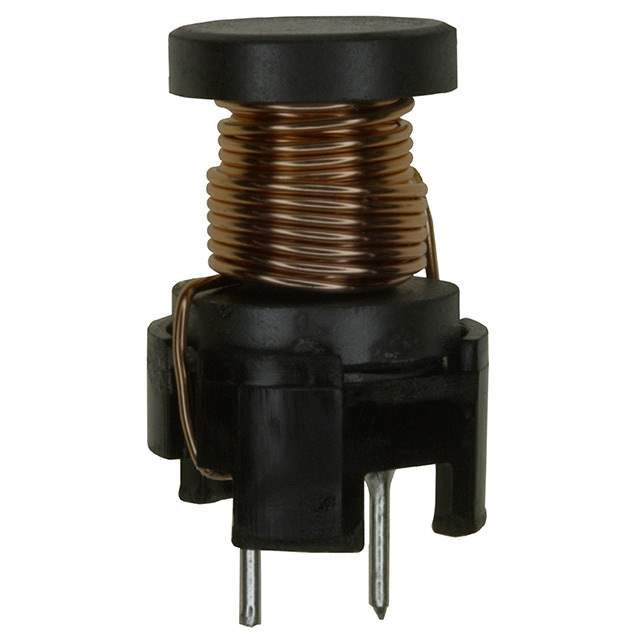

ELC-18B472L Real Image
Same model may have multiple batches, images only for reference.

ELC-18B472L

Part No ELC-18B472L
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 4.7MH 550MA 1.7 OHM TH
Datasheet
ELC-18B472L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Series 18B
Packaging Bulk
Type Wirewound
Inductance 4.7mH
Tolerance ±10%
Current Rating 550mA
Shielding Unshielded
DC Resistance (DCR) 1.7 Ohm
Test Frequency 10kHz
Mounting Style Through Hole
Package Radial
Dimension 0.787" Dia (20.00mm)
Height - Seated (Maximum) 1.063" (27.00mm)
Win Source Part Number 766416-ELC-18B472L
Popularity Medium
Supply and Demand Status Limited
Family Name ELC
Introduction Date March 06, 2006
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian ELC-18B472L CAD Model

Description

The Panasonic Electronic Components ELC-18B472L is a wirewound type inductor with a 4.7mH inductance and a current rating of 550mA.

  • Inductance: 4.7mH
  • Current Rating: 550mA
  • Tolerance: ±10%
  • DC Resistance: 1.7 ohms
  • Shielding: Unshielded
  • Package: Radial
  • Mounting Type: Through Hole
  • Height: 1.063 inches
  • Diameter: 0.787 inches
  • Series: ELC
  • Popularity: Medium
  • Estimated End-of-Life Date: Obsolete
