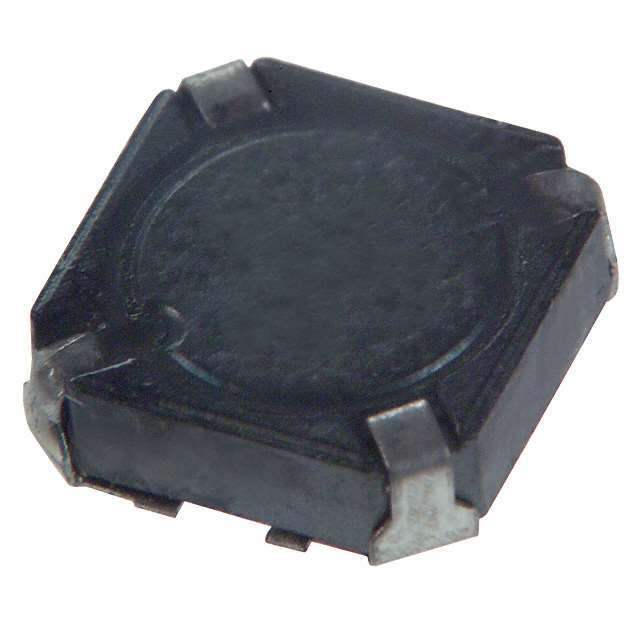

ELL-6PM220M Real Image
Same model may have multiple batches, images only for reference.

ELL-6PM220M

Part No ELL-6PM220M
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 22UH 700MA 200 MOHM
Datasheet
ELL-6PM220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 22μH
Tolerance ±20%
Current Rating 700mA
DC Resistance (DCR) 200 mOhm
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 119049-ELL-6PM220M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELL-6PM220M CAD Model

Description

Feature Overview

The ELL-6PM220M power inductor offers excellent current handling capabilities with minimal core losses, making it perfect for high-frequency applications.

Applications

  • Switching regulators
  • Power amplifiers
  • FPGA power management
  • Variable frequency drives

Features and Benefits

  • High-Frequency Performance: Suitable for high-speed circuits requiring efficient power conversion.
  • Superior Energy Storage: Capable of maintaining stable operation during load changes.
  • Heat Dissipation: Efficient thermal management for sustained performance.

Additional Details

The ELL-6PM220M's optimized core material and winding techniques ensure maximum efficiency, making it an excellent choice for applications where power efficiency and reliability are paramount.
