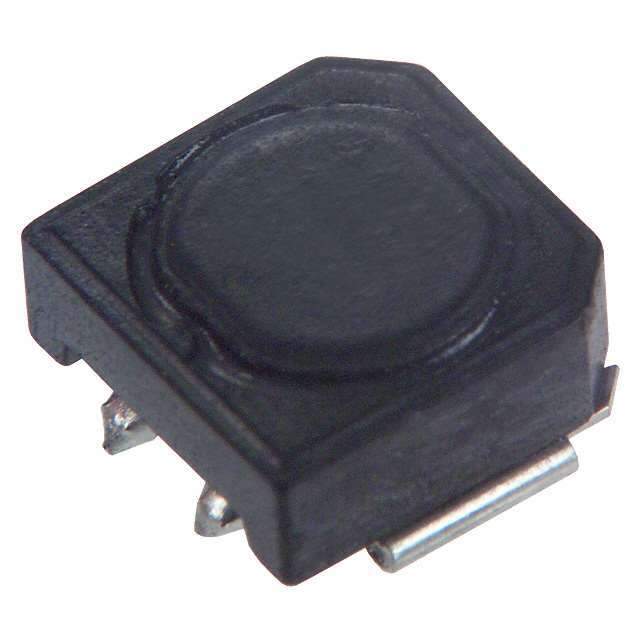

ELL-6SH820M Real Image
Same model may have multiple batches, images only for reference.

ELL-6SH820M

Part No ELL-6SH820M
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 82UH 450MA 600MOHM SMD / 82 µH Shielded Wirewound Inductor 450 mA 600mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Panasonic Electronic Components
Series H
Package Tape & Reel
Product Status Obsolete
Type Wirewound
Inductance 82 µH
Tolerance ±20%
Current Rating (Amps) 450 mA
Shielding Shielded
DC Resistance (DCR) 600mOhm
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.252" L x 0.236" W (6.40mm x 6.00mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number ELL-6SH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names PCD1381CT-NDR,PCD1381CT,ELL6SH820M,PCD1381TR,Q3169605,PCD1381TR-NDR,PCD1381DKR
Standard Package 1,000
Win Source Part Number 977442-ELL-6SH820M
Ultra Librarian 3D Model Ultra Librarian ELL-6SH820M CAD Model

Description

The Panasonic Electronic Components 977442-ELL-6SH820M is a wirewound type inductor that comes with a shielding feature. Bold the product name (e.g., BAV99S,135 → 977442-ELL-6SH820M) and manufacturer (e.g., Nexperia USA Inc. → Panasonic Electronic Components).

  • Inductor Type: Wirewound, Shielded
  • Inductance: 82 µH
  • Height: 0.130" (3.30mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 600mOhm
  • Current Rating (Amps): 450 mA
  • Inductance Frequency - Test: 100 kHz
  • Package/Case: Nonstandard
  • Dimension: 0.252" L x 0.236" W (6.40mm x 6.00mm)
  • Supply and Demand Status: Balanced
