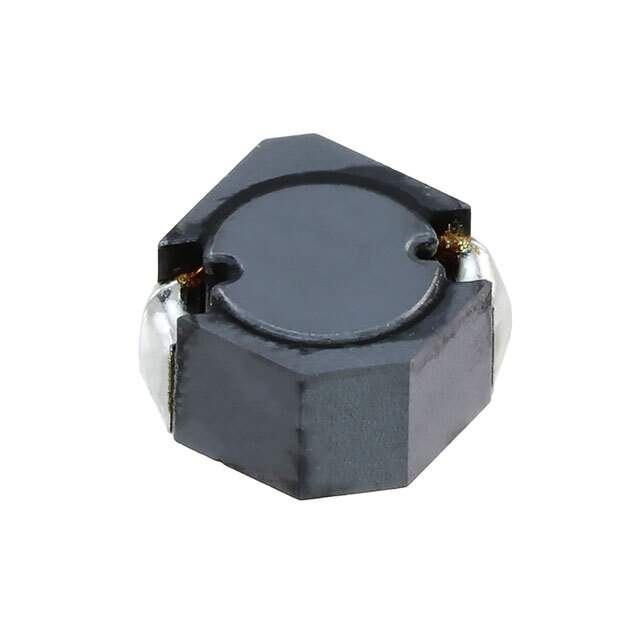

ELL-8TP2R5NB

Get a Quote

Part No	ELL-8TP2R5NB
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	FIXED IND 2.5UH 6.5A 7 MOHM SMD / 2.5 µH Shielded Wirewound Inductor 6.5 A 7mOhm Nonstandard, Corner Terminals
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Panasonic Electronic Components
Series	P
Package	Tape & Reel
Product Status	Obsolete
Type	Wirewound
Inductance	2.5 µH
Tolerance	±30%
Current Rating (Amps)	6.5 A
Current - Saturation (Isat)	5.5A
Shielding	Shielded
DC Resistance (DCR)	7mOhm
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard, Corner Terminals
Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)	0.197" (5.00mm)
Base Product Number	ELL-8TP
Standard Package	500
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1350942-ELL-8TP2R5NB
Ultra Librarian 3D Model	Ultra Librarian ELL-8TP2R5NB CAD Model

Alternative Products

Description

The ELL-8TP2R5NB fixed inductor is a part of the P series. ELL-8TP2R5NB, Panasonic Electronic Components.

Series: P
Type: Wirewound
Shielded: Yes
Inductance: 2.5μH
Tolerance: ±30%
DC Resistance (DCR): 7mOhm
Current Rating (Amps): 6.5 A
Mounting Type: Surface Mount
Package: Nonstandard, Corner Terminals
Temperature Range: -40°C to 105°C
