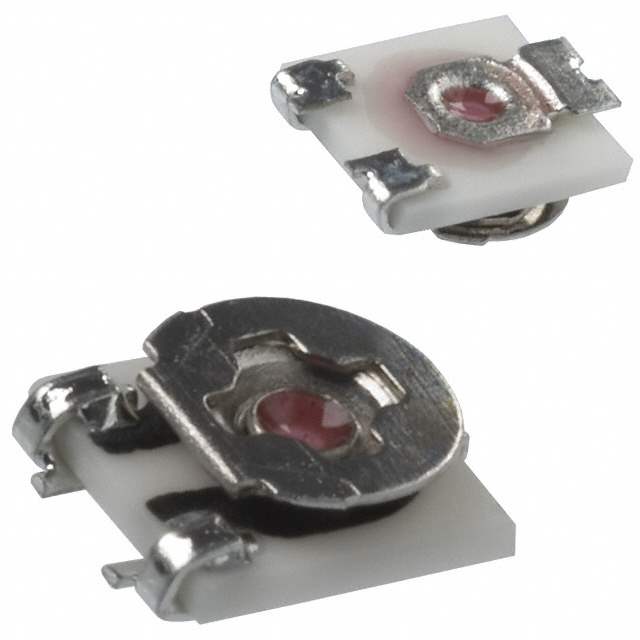

EVM-2NSX80B53 Real Image
Same model may have multiple batches, images only for reference.

EVM-2NSX80B53

Part No EVM-2NSX80B53
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.15W SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Resistance (Ohms) 5k
Power (Watts) 0.15W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.111" x 0.087" Face x 0.032" H (2.81mm x 2.20mm x 0.81mm)
Win Source Part Number 126072-EVM-2NSX80B53
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian EVM-2NSX80B53 CAD Model

Description

Product Overview

The EVM-2NSX80B53 is a sophisticated electronic component tailored to fit a wide array of applications, providing optimal performance and reliability. It is compatible with various circuits and enhances signal processing capabilities significantly.

Features and Benefits

  • Enhanced Signal Processing: Optimized for effective and efficient handling of complex signals.
  • Customizable Configurations: Adaptable to meet specific application requirements.
  • Extended Lifespan: Guarantees longevity even in high-demand operations.

Applications

  • Robotics
  • Telecommunications Equipment
  • Automotive Electronics
  • Renewable Energy Systems
