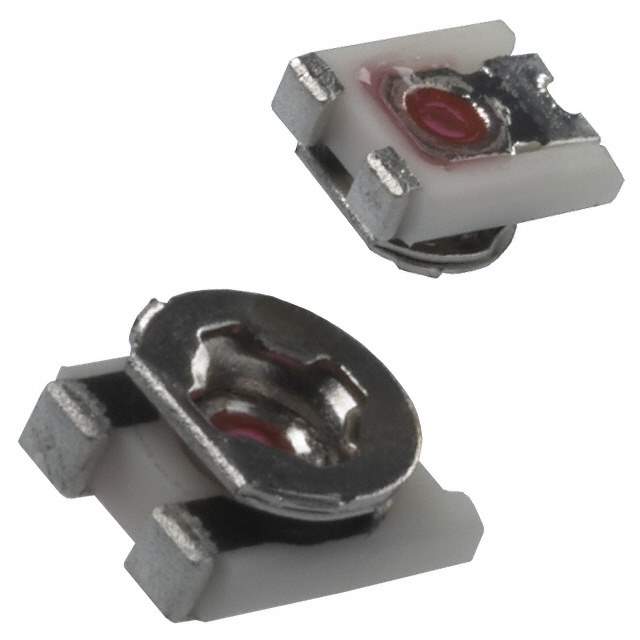

EVM2WSX80B54 Real Image
Same model may have multiple batches, images only for reference.

EVM2WSX80B54

Part No EVM2WSX80B54
Manufacturer Panasonic
Catalog Potentiometers, Variable Resistors
Description Res Cermet Trimmer 50K Ohm 25% 3/20W 1Turn (2.2 X 2.75 X 1.05mm) Foot Print SMD Carrier T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Silver
Composition Cermet
Depth 2.75 mm
Height 1.05 mm
Length 2.2 mm
Maximum Operating Temperature 155 °C
Max Power Dissipation 150 mW
Military Standard Not
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Turns 1
Packaging Cut Tape
Power Rating 150 mW
Radiation Hardening No
REACH SVHC No SVHC
Resistance 50 kΩ
RoHS Compliant
Taper Linear
Temperature Coefficient 250 ppm/°C
Termination Foot Print
Tolerance 25 %
Voltage Rating 50 V
Weight 17 mg
Width 2.2 mm
Win Source Part Number 1058065-EVM2WSX80B54
Categories Potentiometers,Variable Resistors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EVM2WSX80B54 CAD Model

Description

It has a shortage supply and demand status.

  • Product: Potentiometer / Variable Resistor
  • Supply and Demand: Shortage
  • Resistance: 50 kΩ
  • Power Rating: 150 mW
  • Taper: Linear
  • Voltage Rating: 50 V
