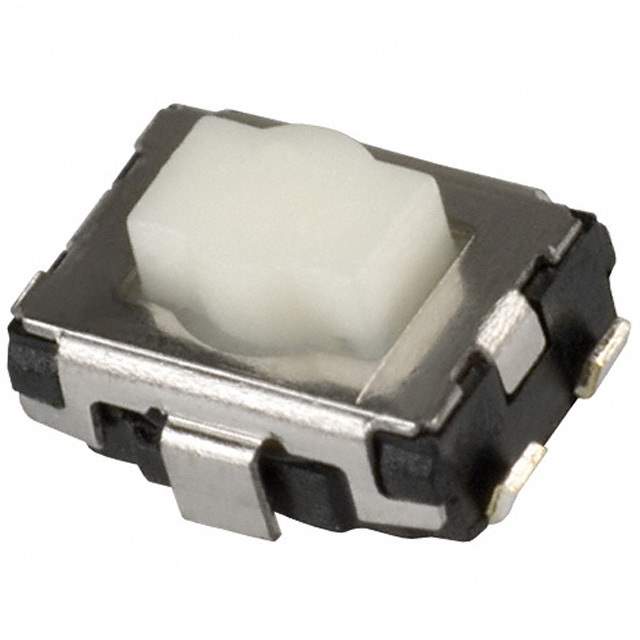

EVQ-P2R02M Real Image
Same model may have multiple batches, images only for reference.

EVQ-P2R02M

Part No EVQ-P2R02M
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V  /  Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Panasonic Electronic Components
Series EVQP2
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Rectangular Button
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.10mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 4.70mm x 3.50mm
Illumination Non-Illuminated
Operating Force 160gf
Features Grounding Pin
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Base Product Number EVQ-P2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names EVQP2R02M,P12292STR-NDR,P12292SCT-NDR,P12292STR,P12292SDKR,P12292SCT
Standard Package 4,000
Win Source Part Number 964510-EVQ-P2R02M
Ultra Librarian 3D Model Ultra Librarian EVQ-P2R02M CAD Model

Description

The Panasonic Electronic Components component with Win Source Part Number 964510-EVQ-P2R02M is a switch in the Tactile Switches category. The 964510-EVQ-P2R02M is manufactured by Panasonic Electronic Components.

  • Series: EVQP2
  • Termination Style: J Lead
  • Switch Function: Off-Mom
  • Actuator Type: Rectangular Button
  • Switch Travel: 0.25mm
  • Contact Rating @ Voltage: 0.02A @ 15VDC
  • Packaging: Tape and Reel
  • Standard Package: 4,000
