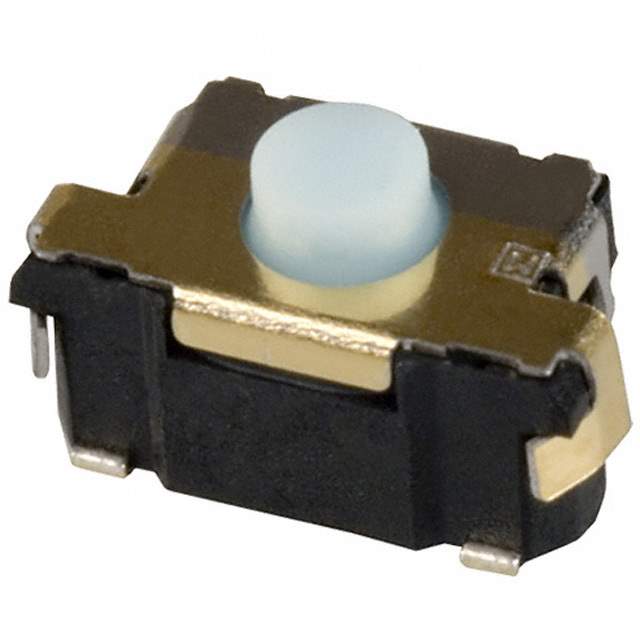

EVQ-P4HB3B Real Image
Same model may have multiple batches, images only for reference.

EVQ-P4HB3B

Part No EVQ-P4HB3B
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating at Voltage 0.02A at 15VDC
Actuator Type Standard
Mounting Style Edge Mount, Right Angle
Actuator Length, Right Angle 2.50mm
Actuator Orientation Side Actuated
Termination Style SMD (SMT) Tab
Outline 6.20mm x 2.55mm
Illumination Non-Illuminated
Operating Force 250gf
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.70mm
Mechanical Life 1,000,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759747-EVQ-P4HB3B
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EVQ-P4HB3B CAD Model

Description

The EVQ-P4HB3B is a SPST-NO circuit switch with an off-mom switch function. It is manufactured by Panasonic Electronic Components.

  • Actuator Type: Standard
  • Actuator Orientation: Side Actuated
  • Switch Travel: 0.70mm
  • Outline: 6.20mm x 2.55mm
  • Illumination: Non-illuminated
  • Operating Force: 250gf
  • Mechanical Life: 1,000,000 cycles
  • Operating Temperature: -40°C to 85°C
  • Mounting: Edge, Right Angle
  • Actuator Length: 2.50mm
  • Actuator Height Off PCB, Vertical: None
  • Market Status: Commonly used, High popularity
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Contact Rating @ Voltage: 0.02A @ 15VDC
