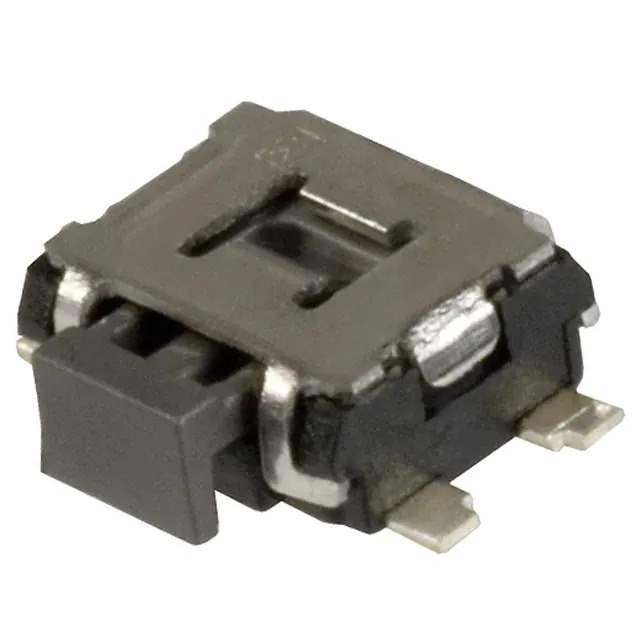

EVQ-P7C01P Real Image
Same model may have multiple batches, images only for reference.

EVQ-P7C01P

Part No EVQ-P7C01P
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQP7
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Type Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style Gull Wing
Outline 4.70mm x 2.90mm
Illumination Non-Illuminated
Operating Force 220gf
Features Board Guide
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.20mm
Mechanical Life 100,000 Cycles
Base Product Number EVQ-P7
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 845300-EVQ-P7C01P
Ultra Librarian 3D Model Ultra Librarian EVQ-P7C01P CAD Model

Description

The EVQ-P7C01P is a tactile switch from Panasonic's EVQP7 series.

  • Termination Style: Gull Wing
  • Board Guide: Yes
  • Circuit: SPST-NO
  • Switch Function: Momentary
  • Actuator Type: Rectangular Button
  • Switch Travel: 0.20mm
  • Contact Rating @ Voltage: 0.05A @ 12VDC
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Operating Temperature: -20°C ~ 70°C
