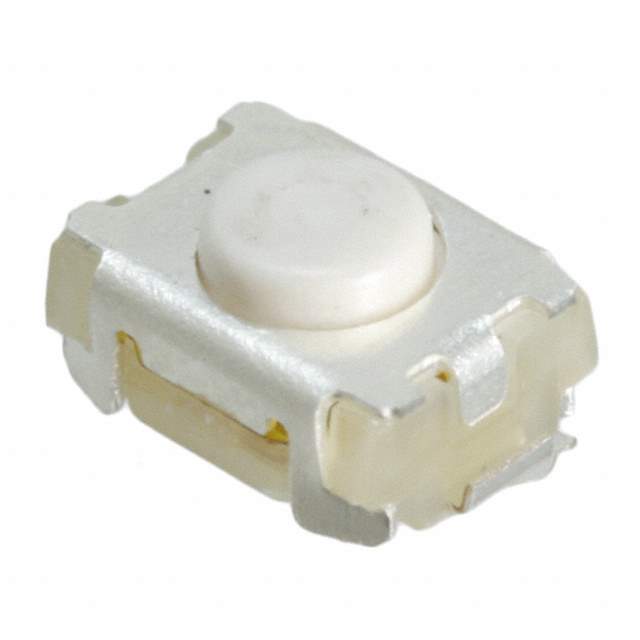

TL1015AF160QG Real Image
Same model may have multiple batches, images only for reference.

TL1015AF160QG

Part No TL1015AF160QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet
TL1015AF160QG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer E-Switch
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.00mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 3.90mm x 2.90mm
Illumination Non-Illuminated
Operating Force 160gf
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 0.20mm
Mechanical Life 200,000 Cycles
Temperature Range - Operating -20°C to 70°C
Win Source Part Number 367629-TL1015AF160QG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name TL1015
Introduction Date March 24, 2005
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian TL1015AF160QG CAD Model

Description

The E-Switch TL1015AF160QG is a tactile switch that is SPST-NO and off-mom.

  • Switch Function: off-mom
  • Illumination: non-illuminated
  • Operating Temperature Range: -20°C to 70°C
  • Mechanical Life: 200,000 cycles
  • Actuation: top actuated
  • Actuator Orientation: top actuated
  • Packaging: reel - TR
  • Family: TL1015
  • ECCN: EAR99
  • Estimated EOL Date: 2024
  • Status: active
  • Introduction Date: March 24, 2005
  • Mounting: SMD (SMT)
  • Operating Force: 160gf
  • HTSUS Code: 8536.50.9031
