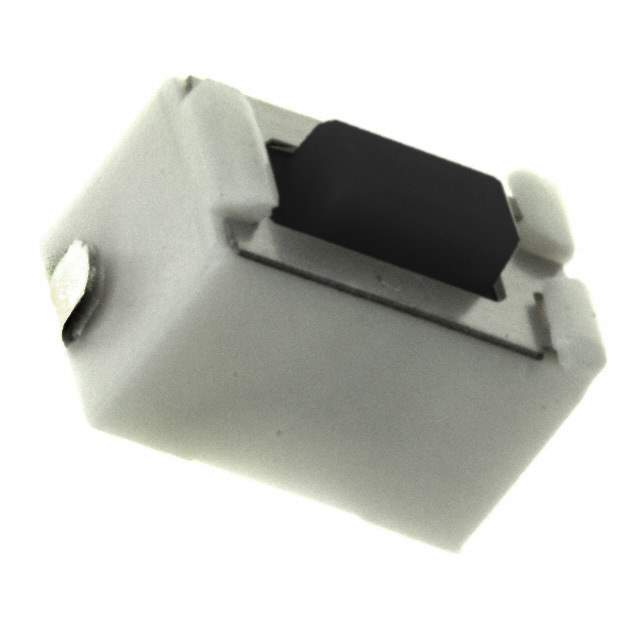

Same model may have multiple batches, images only for reference.

EVQ-PE105K

Name: EVQ-PE105K
Brand: Panasonic
SKU: 1232946
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	EVQ-PE105K
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	Panasonic Electronic Components
Series	EVQPE
Package	Tape & Reel
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting	SMD (SMT)
Actuator Height off PCB, Vertical	5.00mm
Actuator Orientation	Top Actuated
Termination Style	Gull Wing
Outline	6.00mm x 3.50mm
Illumination	Non-Illuminated
Operating Force	100gf
Temperature Range - Operating	-30°C ~ 85°C
Switch Travel	0.25mm
Mechanical Life	50,000 Cycles
Base Product Number	EVQ-PE
Other Names	P13594SCT,P13594STR,EVQPE105K,P13594SDKR
Standard Package	2,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1232946-EVQ-PE105K
Ultra Librarian 3D Model	Ultra Librarian EVQ-PE105K CAD Model

Alternative Products

Description

The Panasonic Electronic Components EVQ-PE105K is a tactile switch that is designed for SMD (SMT) mounting.

Circuit Configuration: SPST-NO
Switch Function: Off-Mom
Switch Travel: 0.25mm
Operating Force: 100gf
Mechanical Life: 50,000 cycles
Temperature Range: -30°C to 85°C
Outline: 6.00mm x 3.50mm
Termination Style: Gull Wing
Lead-Free: yes
RoHS Compliant: yes
