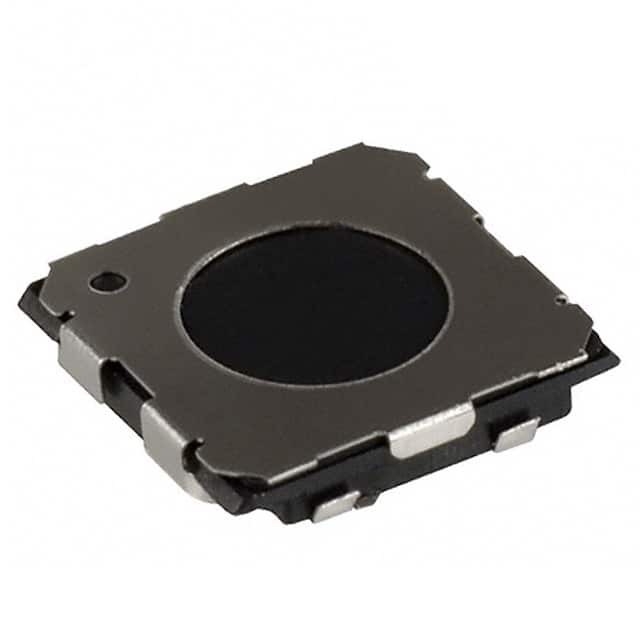

EVQ-PRDA09
Same model may have multiple batches, images only for reference.

EVQ-PRDA09

Part No EVQ-PRDA09
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPDT 0.02A 15V / Tactile Switch SPST-NO x 2 Top Actuated Surface Mount
Datasheet
EVQ-PRDA09 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQPR
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO x 2
Switch Function Off-Mom-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Without
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.90mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 100/260gf
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.40mm, 0.60mm
Mechanical Life 30,000 Cycles
Base Product Number EVQ-PR
Standard Package 5,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 918781-EVQ-PRDA09
Ultra Librarian 3D Model Ultra Librarian EVQ-PRDA09 CAD Model

Description

The Panasonic Tactile Switch 918781-EVQ-PRDA09 is a high-quality switch designed for tactile feedback applications.

  • Circuit Configuration: SPST-NO x 2
  • Switch Function: Off-Mom-Mom
  • Actuator Type: Without
  • Switch Travel: 0.40mm and 0.60mm
  • Contact Rating: 0.02A @ 15VDC
  • Package Size: 6.00mm x 6.00mm
  • Standard Package: 5,000 pcs
