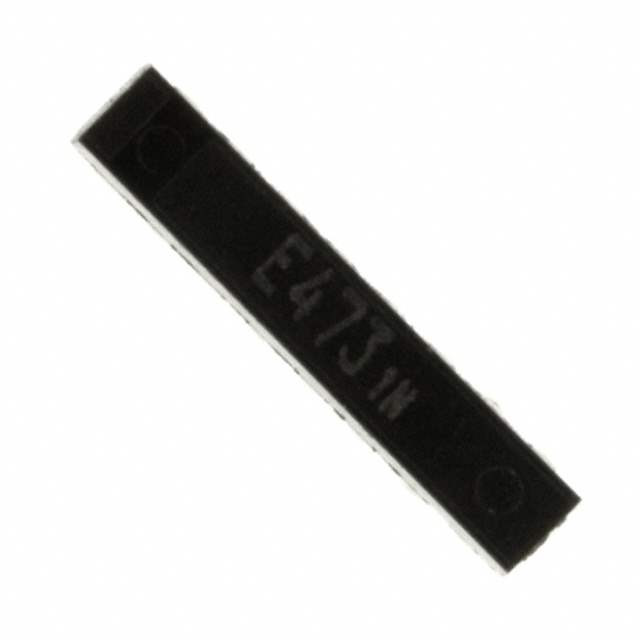

EXBH8E473J Real Image
Same model may have multiple batches, images only for reference.

EXBH8E473J

Part No EXBH8E473J
Manufacturer Panasonic
Catalog Resistor Networks, Arrays
Description RES ARRAY 7 RES 47K OHM 8SSIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Panasonic Electronic Components
Packaging Cut Reel
Status Obsolete(EOL)
Circuit Type Bussed
Resistance (Ohms) 47k
Tolerance ±5%
Number of Resistors 7
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Case / Package 8-SIP
Height - Seated (Max) 0.106" (2.69mm)
Win Source Part Number 203977-EXBH8E473J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EXBH8E473J CAD Model

Description

Description

The EXBH8E473J resistor network is an ideal choice for circuits requiring consistent resistance. With a value of 47 K Ohms, it delivers precise resistance control in automated and manual operations.

Features and Benefits

  • Optimal resistance tolerance for enhanced accuracy.
  • Robust against electrical noise and interference.
  • Suitable for high-density layout due to its compact package.

Applications

  • Telecommunications equipment.
  • Automotive electronics systems.
  • Industrial automation.
