Same model may have multiple batches, images only for reference.

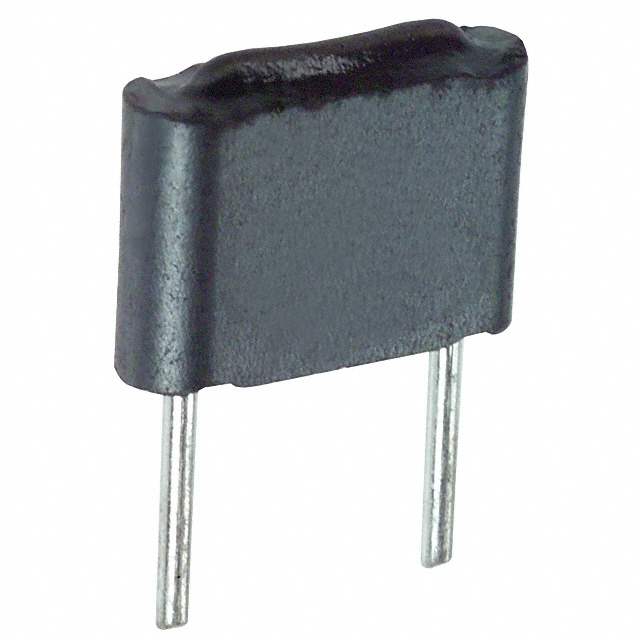

EXCELDR25C Real Image
Same model may have multiple batches, images only for reference.

EXCELDR25C

Part No EXCELDR25C
Manufacturer Panasonic
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 80 OHM RADIAL 1LN
Datasheet
EXCELDR25C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete(EOL)
Number of Lines 1
Impedance @ Frequency 80 Ohm @ 100MHz
Current Rating (Max) 7A
DC Resistance (DCR) (Max) 10 mOhm
Mounting Through Hole
Height (Max) 0.276" (7.00mm)
Dimension 0.303" L x 0.096" W (7.70mm x 2.45mm)
Win Source Part Number 040214-EXCELDR25C
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EXCELDR25C CAD Model

Description

Description

The EXCELDR25C is a versatile component tailored for diverse applications, providing unmatched performance and efficiency.

Applications

  • Battery management systems
  • Power conversion devices
  • Automated testing equipment
  • Precision instrumentation

Features and Benefits

  • High conversion efficiency
  • Wide operating temperature range
  • Durable construction
  • Enhanced thermal management

This component is critical for projects necessitating high efficiency and thermal resilience.
