Same model may have multiple batches, images only for reference.

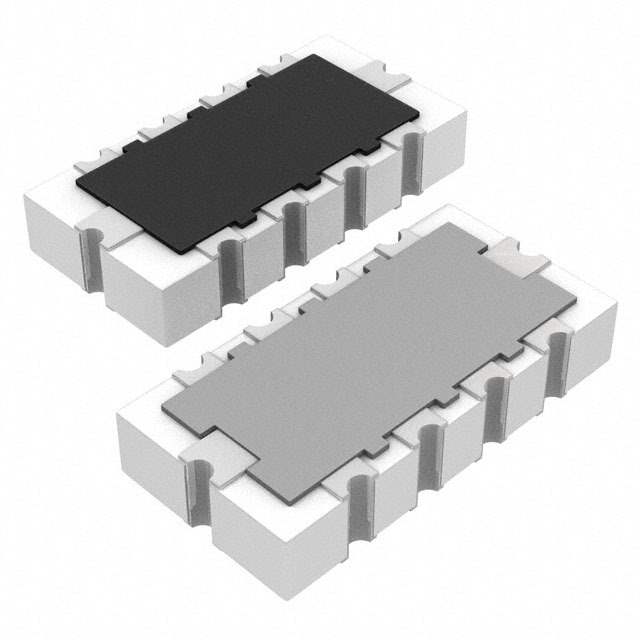

EZA-DLU01AAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-DLU01AAJ

Part No EZA-DLU01AAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) SMD
Datasheet
EZA-DLU01AAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 1st
Technology RC (Pi)
Number of Channels 2
Resistance - Channel (Ohms) 27, 15k
Values R = 27 Ohms, 15 kOhms, C = 47pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications USB
Voltage Rating 12V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.033" (0.85mm)
Win Source Part Number 110485-EZA-DLU01AAJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EZA-DLU01AAJ CAD Model

Description

The EZA-DLU01AAJ is engineered to offer exceptional performance in electronic devices. This component is designed to exceed modern efficiency standards while maintaining reliability.

Features and Benefits

  • Optimized design for enhanced performance
  • High efficiency rates
  • Extended operational life
  • Compliance with latest environmental regulations

Applications and Projects

  • Renewable energy systems
  • Robotics
  • Network equipment

Additional Details: By integrating the EZA-DLU01AAJ, you can ensure device reliability and efficiency, contributing to lower operational costs and better environmental outcomes.
