Same model may have multiple batches, images only for reference.

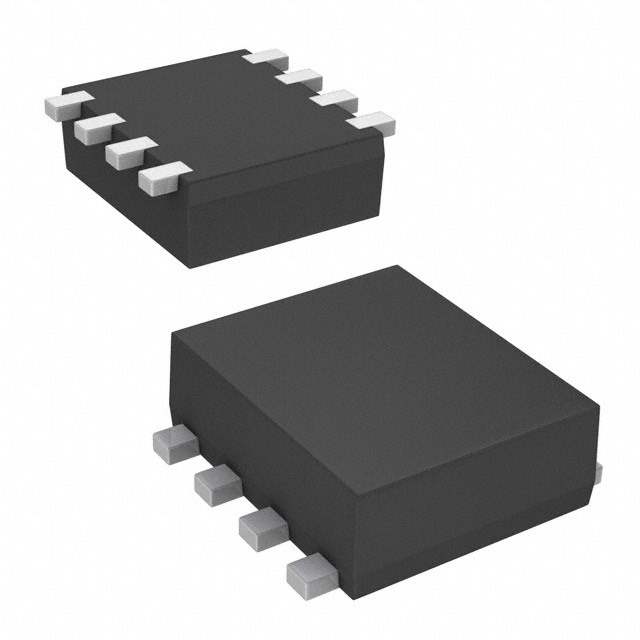

FK8V03050L Real Image
Same model may have multiple batches, images only for reference.

FK8V03050L

Part No FK8V03050L
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N CH 33V 8A WMINI8-F1
Datasheet
FK8V03050L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 33V
Continuous Drain Current at 25°C 8A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.5V @ 730μA
Max Gate Charge 5.1nC @ 4.5V
Max Input Capacitance 520pF @ 10V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 1W (Ta)
Maximum Rds On at Id,Vgs 15 mOhm @ 4A, 10V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package WMini8-F1
Dimension 8-SMD, Flat Lead
Win Source Part Number 106638-FK8V03050L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FK8V03050L CAD Model

Description

The FK8V03050L is a surface mount N-Channel MOSFET from Panasonic Electronic Components.

  • Drain-Source Breakdown Voltage: 33V
  • Continuous Drain Current: 8A (Ta) at 25°C
  • Gate-Source Threshold Voltage: 2.5V at 730μA
  • Max Gate Charge: 5.1nC at 4.5V
  • Maximum Rds On: 15 mOhm @ 4A, 10V
  • Technology: MOSFET
  • Polarity: N-Channel
  • Status: Active
  • Operating Temperature Range: 150°C (TJ)
  • Case/Package: WMini8-F1
  • Dimensions: 8-SMD, Flat Lead
  • Application: Discrete semiconductor products
