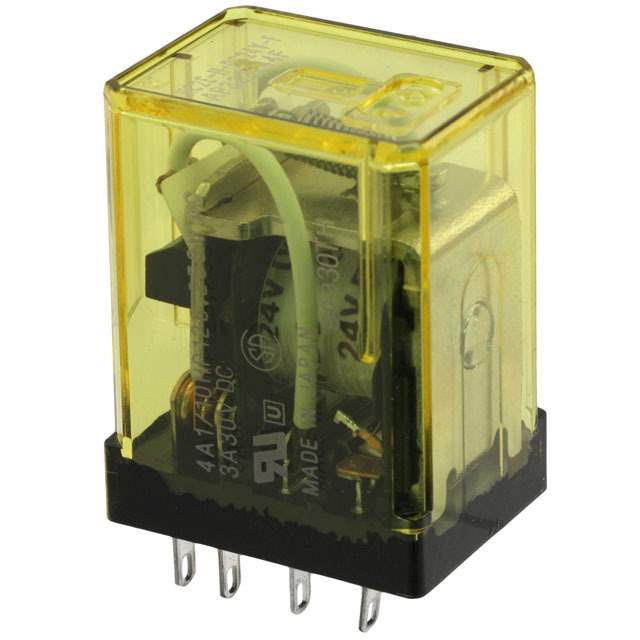

HC4ED-H-DC24V

Name: HC4ED-H-DC24V
Brand: Panasonic
SKU: 141440
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HC4ED-H-DC24V
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY GEN PURPOSE 4PDT 1A 24V
Datasheet	HC4ED-H-DC24V Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	Panasonic Electric Works
Packaging	Bulk
Status	Active
Relay Type	General Purpose
Coil Type	Non Latching
Coil Current	37mA
Coil Voltage	24VDC
Contact Form	4PDT (4 Form C)
Contact Rating (Current)	1A
Switching Voltage	250VAC - Max
Turn On Voltage (Max)	19.2 VDC
Turn Off Voltage (Min)	2.4 VDC
Operate Time	20ms
Release Time	20ms
Mounting	Socketable
Termination Style	Plug In
Coil Power	900 mW
Coil Resistance	650 Ohms
Temperature Range - Operating	-40°C to 60°C
Win Source Part Number	204586-HC4ED-H-DC24V
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian HC4ED-H-DC24V CAD Model

Alternative Products

Description

The Panasonic Electric Works General Purpose Relay is a 4PDT (4 Form C) contact form relay that is socketable and has a coil voltage of 24VDC.

Contact Form: 4PDT (4 Form C)
Mounting: Socketable
Coil Voltage: 24VDC
Coil Resistance: 650 ohms
Coil Current: 37mA
Operate/Release Time: 20ms
Coil Power: 900mW
Contact Rating: 1A
Switching Voltage: 250VAC - Max
Turn On Voltage (Max): 19.2 VDC
Turn Off Voltage (Min): 2.4 VDC
Coil Type: Non-Latching
Popularity: Medium
