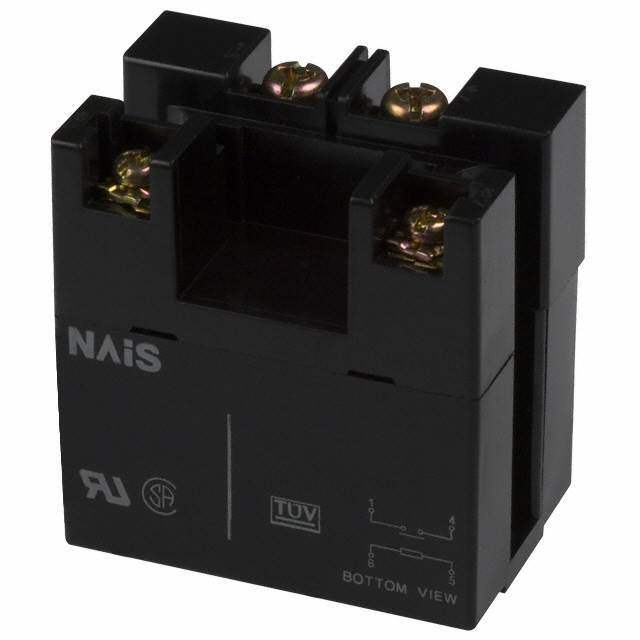

HE1aN-S-DC48V Real Image
Same model may have multiple batches, images only for reference.

HE1aN-S-DC48V

Part No HE1aN-S-DC48V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 48V
Datasheet
HE1aN-S-DC48V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 40mA
Coil Voltage 48VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30A
Switching Voltage 277VAC, 30VDC - Max
Turn On Voltage (Max) 33.6 VDC
Turn Off Voltage (Min) 4.8 VDC
Operate Time 30ms
Release Time 10ms
Mounting Chassis Mount
Termination Style Screw Terminal
Coil Power 1.92 W
Coil Resistance 1.2 kOhms
Temperature Range - Operating -50°C to 55°C
Win Source Part Number 204733-HE1aN-S-DC48V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HE1aN-S-DC48V CAD Model

Description

The HE1aN-S-DC48V relay by Panasonic Electric Works is an active component used in various applications. It has a coil voltage of 48VDC and a coil resistance of 1.2 kOhms. It has a contact rating (current) of 30A and a switching voltage of 277VAC, 30VDC - Max. The relay has a contact form of SPST-NO (1 Form A) and a mounting style of chassis mount with screw terminals. It has an operate time of 30ms and a release time of 10ms. The coil type is non-latching and the relay type is general purpose. The temperature range for operating is -50°C to 55°C.
