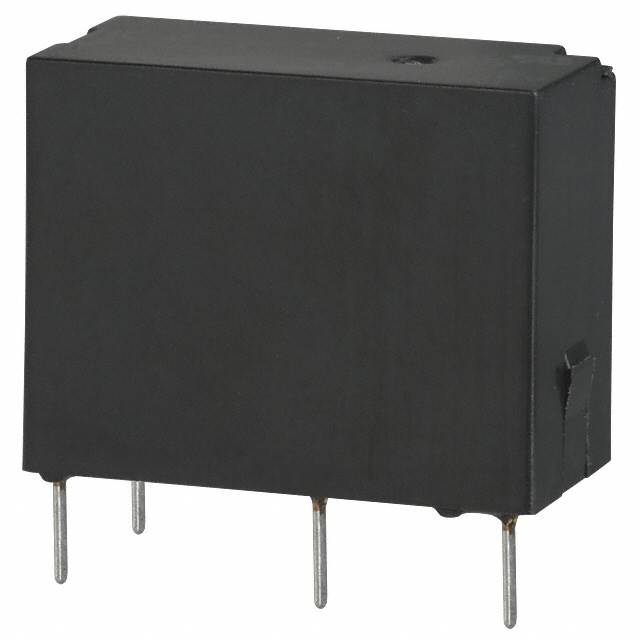

JQ1AP-12V-F

Name: JQ1AP-12V-F
Brand: Panasonic
SKU: 166229
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	JQ1AP-12V-F
Manufacturer	Panasonic
Catalog	Power Relays, Over 2 Amps
Description	RELAY GEN PURPOSE SPST 10A 12V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	Panasonic Electric Works
Packaging	Bulk
Status	Obsolete(EOL)
Relay Type	General Purpose
Coil Type	Non Latching
Coil Current	16.7mA
Coil Voltage	12VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	10A
Switching Voltage	250VAC, 110VDC - Max
Turn On Voltage (Max)	9.6 VDC
Turn Off Voltage (Min)	0.6 VDC
Operate Time	20ms
Release Time	10ms
Features	Insulation - Class E
Mounting	Through Hole
Termination Style	PC Pin
Coil Power	200 mW
Coil Resistance	720 Ohms
Temperature Range - Operating	-40°C to 70°C
Win Source Part Number	205746-JQ1AP-12V-F
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	100
Ultra Librarian 3D Model	Ultra Librarian JQ1AP-12V-F CAD Model

Alternative Products

Description

The Panasonic Electric Works 205746-JQ1AP-12V-F is a general-purpose relay with a contact rating of 10A and a switching voltage of 250VAC, 110VDC - Max.

Manufacturer: Panasonic Electric Works
Contact Rating: 10A
Switching Voltage: 250VAC, 110VDC - Max
Coil Voltage: 12VDC
Coil Resistance: 720 Ohms
Contact Form: SPST-NO (1 Form A)
Coil Type: Non Latching
Mounting: Through hole
Termination Style: PC Pin
Release Time: 10ms
Operate Time: 20ms
Category: Relays
Status: Obsolete(EOL)
Operating Temperature: -40°C to 70°C
Supply and demand status: balanced
Package: 100 relays
