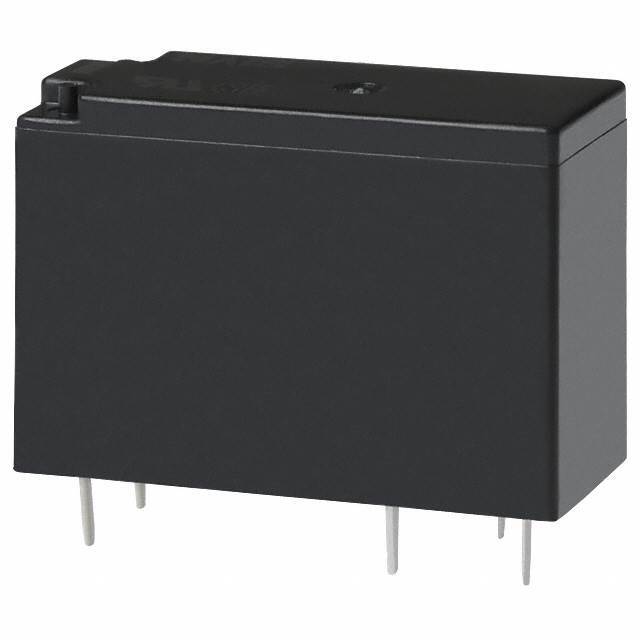

Same model may have multiple batches, images only for reference.
JVN1AF-4.5V-F Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

JVN1AF-4.5V-F

Part No JVN1AF-4.5V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 4.5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole
Coil Voltage 4.5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 277VAC, 30VDC - Max
Load - Max Switching 4432VA, 480W
Coil Current 44.4 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 3.38 VDC
Must Release Voltage 0.23 VDC
Operate Time 12 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Approval Agency CSA, UR, VDE
Relay Type General Purpose
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1549134-JVN1AF-4.5V-F
Ultra Librarian 3D Model Ultra Librarian JVN1AF-4.5V-F CAD Model
