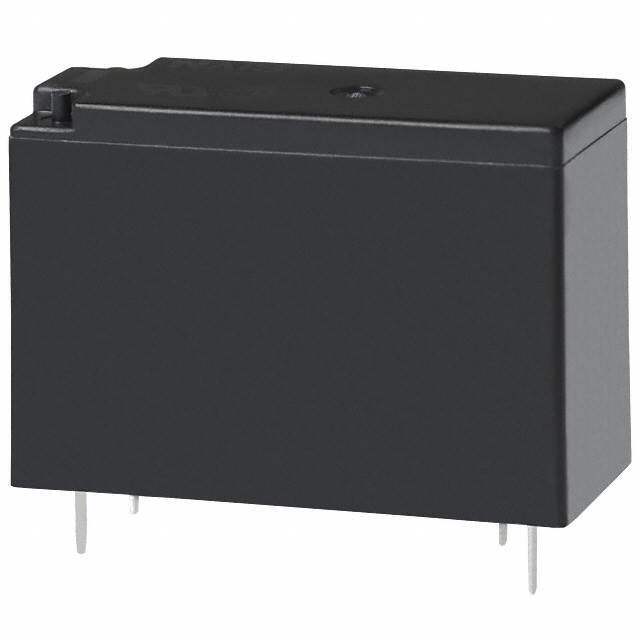

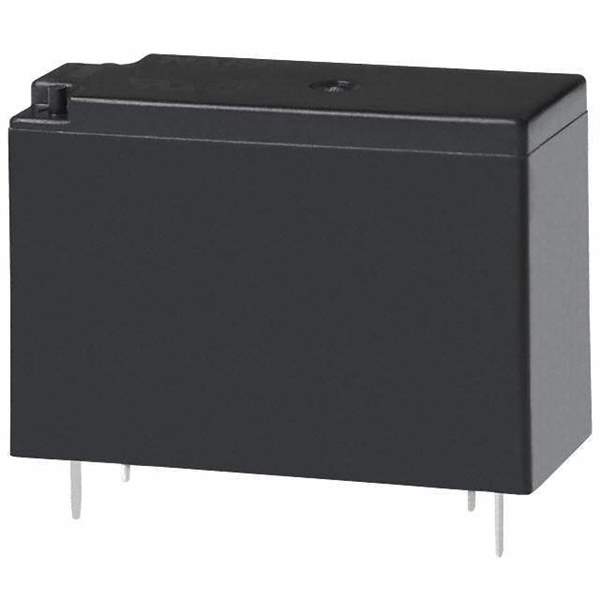

JW2ASN-DC24V

Name: JW2ASN-DC24V
Brand: Panasonic
SKU: 166454
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	JW2ASN-DC24V
Manufacturer	Panasonic
Catalog	Power Relays, Over 2 Amps
Description	RELAY GEN PURPOSE DPST 5A 24V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	Panasonic Electric Works
Packaging	Tray
Status	Active
Relay Type	General Purpose
Coil Type	Non Latching
Coil Current	22mA
Coil Voltage	24VDC
Contact Form	DPST (2 Form A)
Contact Rating (Current)	5A
Switching Voltage	250VAC, 30VDC - Max
Turn On Voltage (Max)	16.8 VDC
Turn Off Voltage (Min)	2.4 VDC
Operate Time	15ms
Release Time	5ms
Features	Sealed - Fully
Mounting	Through Hole
Termination Style	PC Pin
Coil Power	530 mW
Coil Resistance	1.1 kOhms
Temperature Range - Operating	-40°C to 60°C
Win Source Part Number	139770-JW2ASN-DC24V
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	100
Ultra Librarian 3D Model	Ultra Librarian JW2ASN-DC24V CAD Model

Alternative Products

Description

The Panasonic Electric Works 139770-JW2ASN-DC24V is an electronic component that is a medium popularity and limited supply and demand status product. This product is manufactured by Panasonic Electric Works and has a Win Source Part Number of 139770-JW2ASN-DC24V. The product is a sealed - fully DPST (2 Form A) relay type with a coil voltage of 24VDC and contact rating (current) of 5A. The switching voltage is 250VAC, 30VDC - Max and the turn on voltage (Max) is 16.8 VDC. The turn off voltage (Min) is 2.4 VDC and the release time is 5ms.
