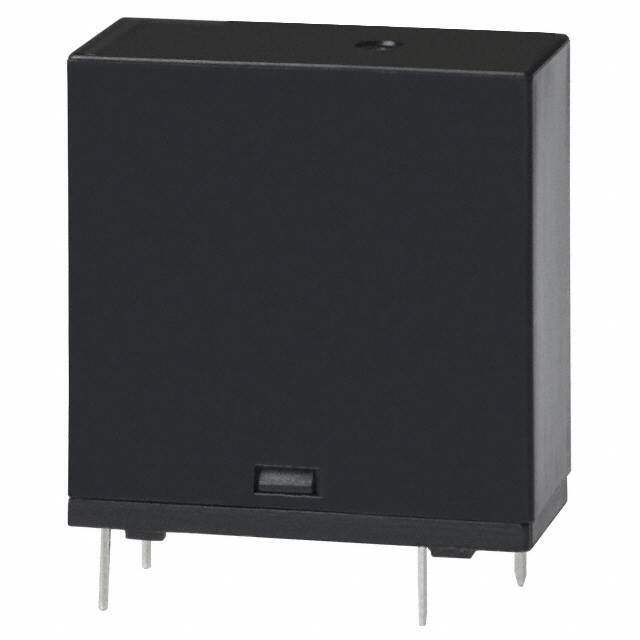

LKP1AF-12V Real Image
Same model may have multiple batches, images only for reference.

LKP1AF-12V

Part No LKP1AF-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 44.2mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 277VAC, 30VDC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 530 mW
Coil Resistance 272 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 041057-LKP1AF-12V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian LKP1AF-12V CAD Model

Description

The Panasonic Electric Works LKP1AF-12V is a high-quality electronic component that is suitable for various applications.

  • Sealed: flux protection
  • Contact Form: SPST-NO (1 Form A)
  • Mounting: through-hole
  • Coil Resistance: 272 Ohms
  • Coil Current: 44.2mA
  • Operate Time: 15ms
  • Relay Type: general-purpose
  • Coil Type: non-latching
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 10A
  • Switching Voltage: 277VAC, 30VDC - Max
  • Turn-On Voltage (Max): 8.4 VDC
  • Turn-Off Voltage (Min): 1.2 VDC
  • Release Time: 5ms
  • Coil Power: 530mW
  • Supply and Demand Status: limited
