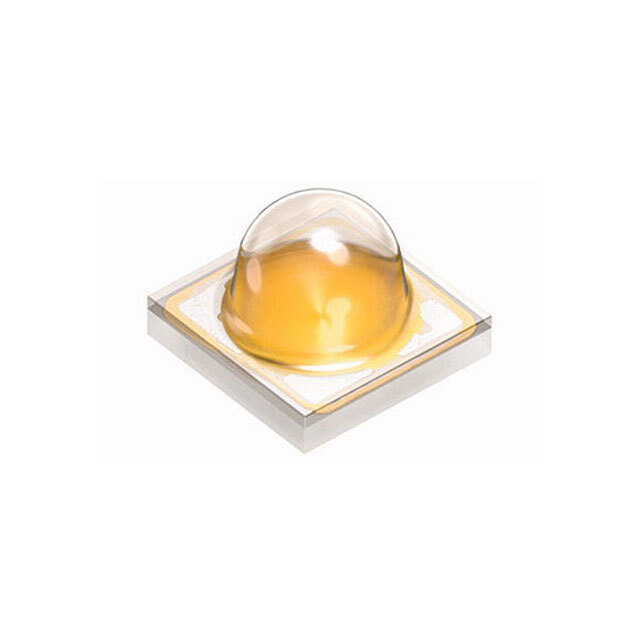

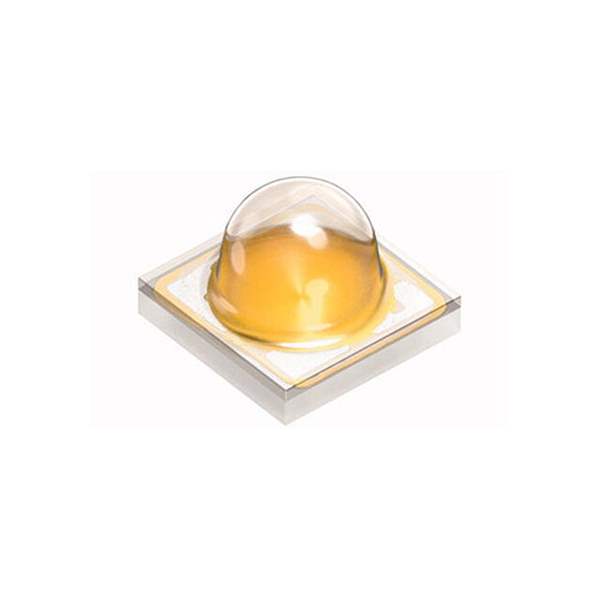

Same model may have multiple batches, images only for reference.
LNJ03004GND1 Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

LNJ03004GND1

Part No LNJ03004GND1
Manufacturer Panasonic
Catalog LED Lighting - White
Description LED COOL WHITE 5000K 3230
Datasheet
LNJ03004GND1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Color White, Cool
CCT (K) 5000K
Flux @ 25°C, Current - Test 59lm (37lm ~ 80lm)
Current - Test 75mA
Voltage - Forward (Vf) (Typ) 6.2V
Lumens/Watt @ Current - Test 127 lm/W
CRI (Color Rendering Index) 82 (Typ)
Current - Max 120mA
Mounting Type Surface Mount
Case / Package 1212 (3030 Metric)
Supplier Device Package 3230
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.031\
Package Tape & Reel (TR);Cut Tape (CT);Reel
Supply and Demand Status Limited
Win Source Part Number 1568842-LNJ03004GND1
Ultra Librarian 3D Model Ultra Librarian LNJ03004GND1 CAD Model

Description

N
