Same model may have multiple batches, images only for reference.

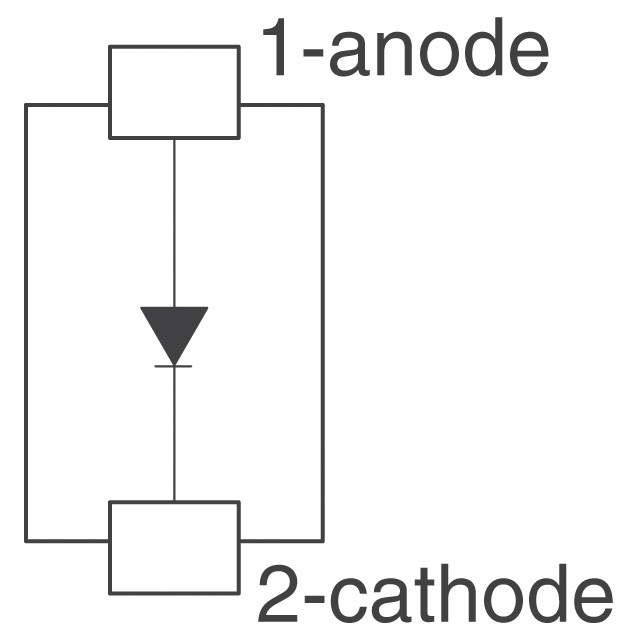

MA27P0700L Real Image
Same model may have multiple batches, images only for reference.

MA27P0700L

Part No MA27P0700L
Manufacturer Panasonic
Catalog RF Diodes
Description DIODE PIN 60V 100MA SSSMINI-2P
Datasheet
MA27P0700L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 60V
Current - Max 100mA
Capacitance @ Vr, F 0.35pF @ 1V, 1MHz
Resistance @ If, F 1.5 Ohm @ 10mA, 100MHz
Power Dissipation (Max) 150mW
Temperature Range - Operating 150°C (TJ)
Case / Package SSSMini2-F2
Win Source Part Number 1065474-MA27P0700L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MA27P0700L CAD Model

Description

The Panasonic Electronic Components MA27P0700L is an obsolete (EOL) PIN - single diode.

  • Voltage - Peak Reverse (Max): 60V
  • Maximum Power Dissipation: 150mW
  • Capacitance @ Vr, F: 0.35pF @ 1V, 1MHz
  • Resistance @ If, F: 1.5 Ohm @ 10mA, 100MHz
  • Current - Max: 100mA
