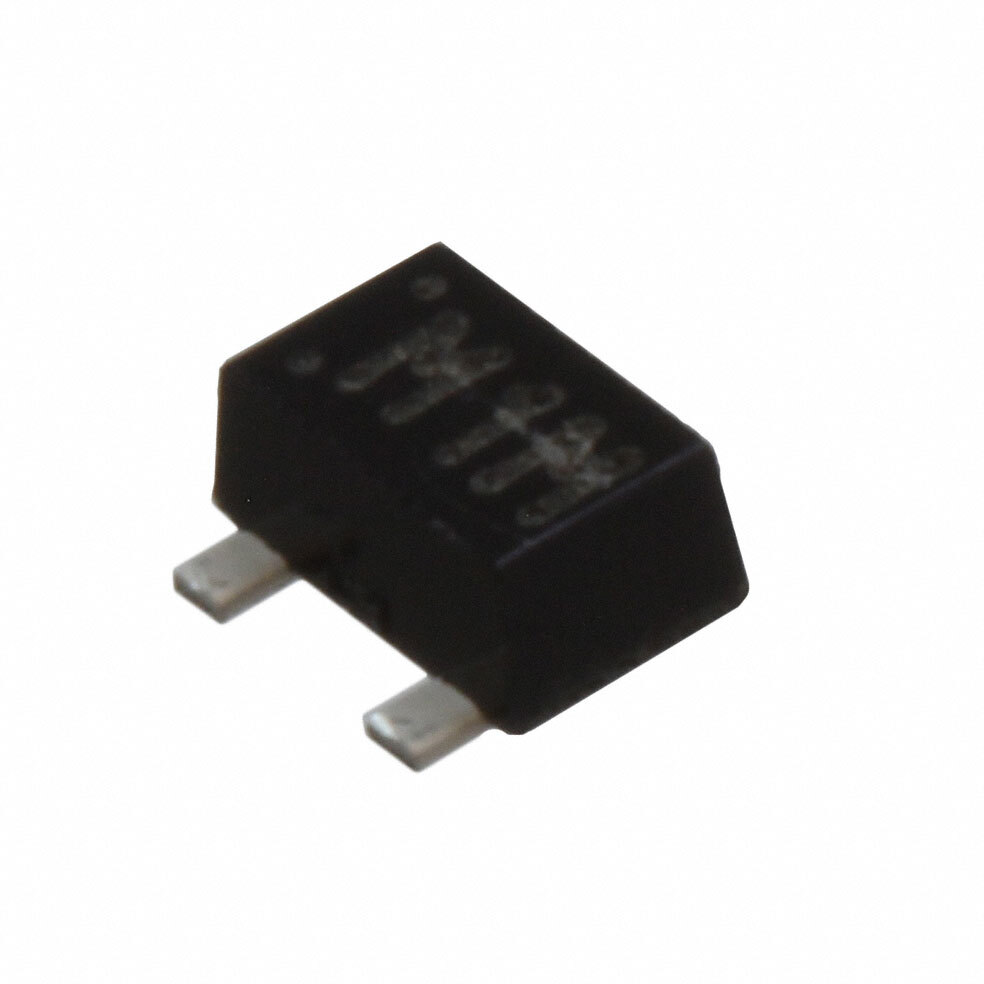

MA3J74400L Panasonic
Same model may have multiple batches, images only for reference.

MA3J74400L

Part No MA3J74400L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description Diode Schottky 30V 0.2A 3-Pin SMini3-F1 T/R / DIODE SCHOTTKY 30V 200MA SMINI3
Datasheet
MA3J74400L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel package
Part Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Maximum) @ If 550mV @ 200mA
Reverse Recovery Time (trr) 3ns
Current - Reverse Leakage @ Vr 50μA @ 30V
Capacitance @ Vr, F 30pF @ 0V, 1MHz
Mounting SMD
Package SC-85
Manufacturer Package SMini3-F1
Operating Temperature - Junction 150°C (Maximum)
Win Source Part Number 785177-MA3J74400L
Popularity Medium
Supply and Demand Status Balance
Family Name MA3J744
Introduction Date March 16, 2000
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MA3J74400L CAD Model

Description

The Panasonic Electronic Components MA3J74400L is a Schottky diode manufactured by Panasonic Electronic Components.

  • Average Rectified Current: 200mA
  • Reverse Recovery Time: 3ns
  • Current Reverse Leakage: 50μA @ 30V
  • Capacitance: 30pF @ 0V, 1MHz
  • Voltage Forward (Vf) (Maximum) @ If: 550mV @ 200mA
  • Voltage DC Reverse (Vr) (Maximum): 30V
  • Package: SC-85
  • Temperature Range: 150°C (Maximum)
  • Alternative Parts: MA3J744 and DB3J313K
