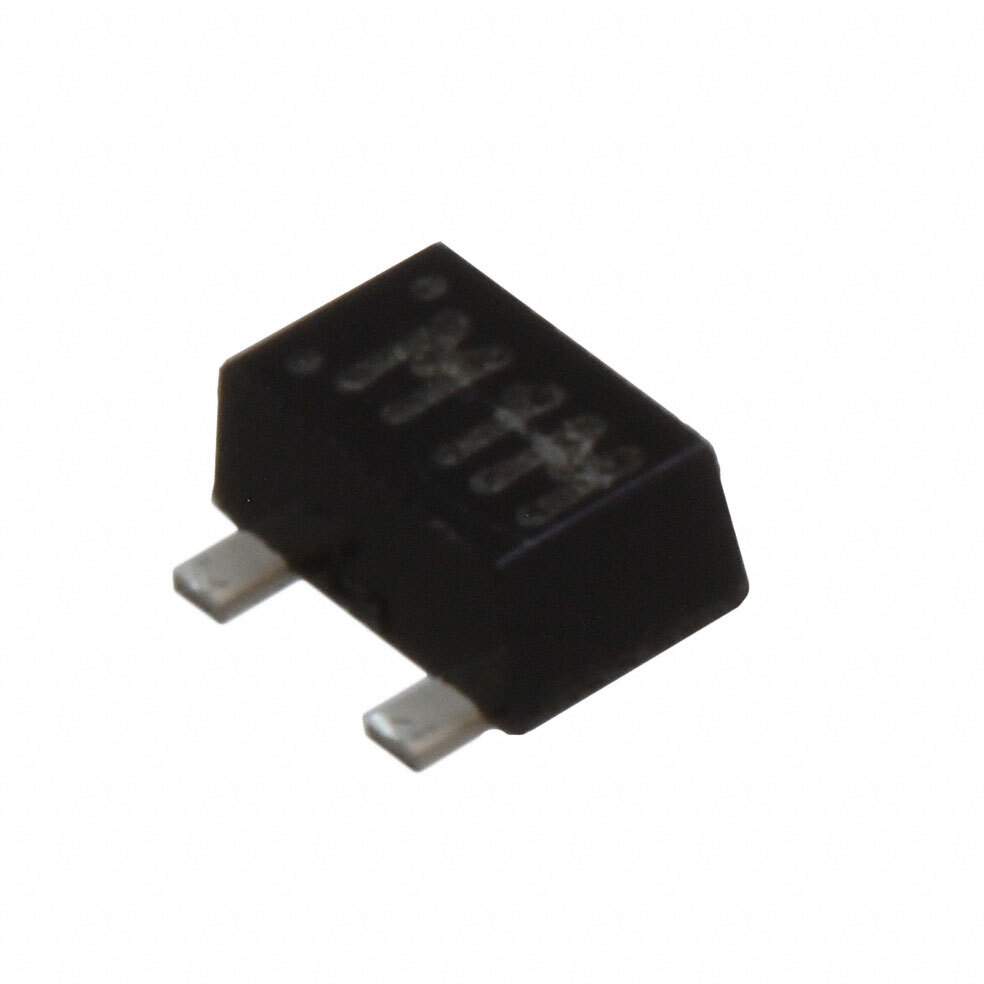

MA744-TX Real Image
Same model may have multiple batches, images only for reference.

MA744-TX

Part No MA744-TX
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA SMINI3
Datasheet
MA744-TX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 550mV @ 200mA
Reverse Recovery Time (trr) 3ns
Current - Reverse Leakage @ Vr 50μA @ 30V
Capacitance @ Vr, F 30pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SMini3-F1
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 207243-MA744-TX
Ultra Librarian 3D Model Ultra Librarian MA744-TX CAD Model

Description

This Panasonic Electronic Components Schottky diode has a maximum DC reverse voltage of 30V and an average rectified current of 200mA.

  • Maximum DC Reverse Voltage: 30V
  • Average Rectified Current: 200mA
  • Forward Voltage: 550mV @ 200mA
  • Reverse Recovery Time (trr): 3ns
  • Current Reverse Leakage @ Vr: 50μA @ 30V
  • Capacitance @ Vr, F: 30pF @ 0V, 1MHz
  • Mounting Technology: Surface Mount Technology (SMT)
  • Operating Temperature - Junction: 150°C (Max)
  • Package: Reel
