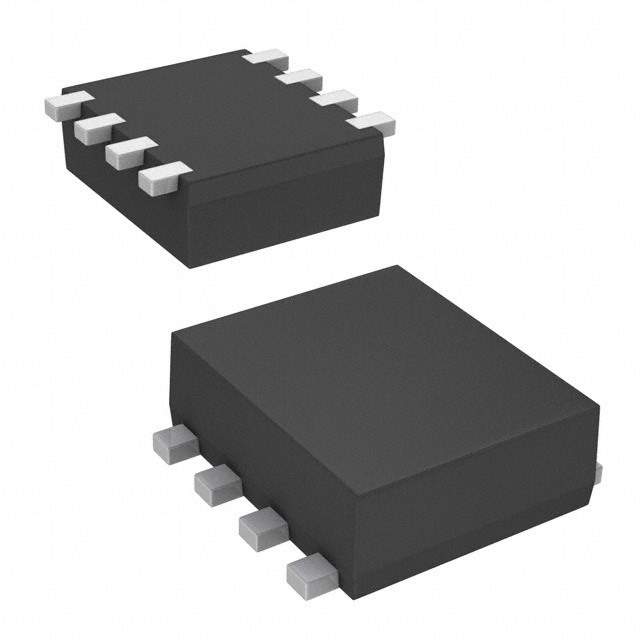

MTM684110LBF Real Image
Same model may have multiple batches, images only for reference.

MTM684110LBF

Part No MTM684110LBF
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2P-CH 12V 4.8A WMINI8-F1  /  Mosfet Array 2 P-Channel (Dual) 12V 4.8A 1W Surface Mount WMini8-F1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Arrays
Mfr Panasonic Electronic Components
Package Tape & Reel
Product Status Obsolete
FET Type 2 P-Channel (Dual)
FET Feature Standard
Drain to Source Voltage (Vdss) 12V
Current - Continuous Drain (Id) @ 25°C 4.8A
Rds On (Max) @ Id, Vgs 32mOhm @ 1A, 5V
Vgs(th) (Max) @ Id 1V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds 1400pF @ 10V
Power - Max 1W
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Package / Case 8-SMD, Flat Lead
Supplier Device Package WMini8-F1
Base Product Number MTM68411
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Names MTM684110LBFTR,MTM684110LBFCT,MTM684110LBFDKR
Standard Package 3,000
Win Source Part Number 963421-MTM684110LBF
Ultra Librarian 3D Model Ultra Librarian MTM684110LBF CAD Model

Description

The 963421-MTM684110LBF is a transistor product categorized under discrete semiconductor products. It is a dual P-channel FET type with a standard FET feature.

  • Drain to Source Voltage (Vdss): 12V
  • Current - Continuous Drain (Id) @ 25°C: 4.8A
  • Rds On (Max) @ Id, Vgs: 32mOhm @ 1A, 5V
  • Package/Case: 8-SMD, Flat Lead
  • Supplier Device Package: WMini8-F1
  • Product Status: Obsolete
