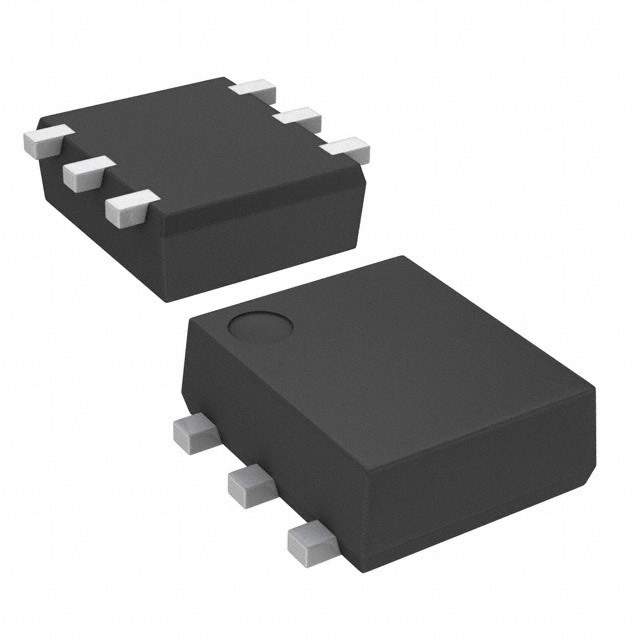

MTM867270LBF Real Image
Same model may have multiple batches, images only for reference.

MTM867270LBF

Part No MTM867270LBF
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 2.2A WSSMINI6
Datasheet
MTM867270LBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 2.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4V
Gate-Source Threshold Voltage 1.3V @ 1mA
Max Input Capacitance 280pF @ 10V
Maximum Gate-Source Voltage ±10V
Power Dissipation (Max) 540mW (Ta)
Maximum Rds On at Id,Vgs 105 mOhm @ 1A, 4V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package WSSMini6-F1
Dimension 6-SMD, Flat Leads
Win Source Part Number 045082-MTM867270LBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MTM867270LBF CAD Model

Description

The MTM867270LBF is a MOSFET technology-based electronic component manufactured by Panasonic Electronic Components. It has a continuous drain current of 2.2A (Ta) and a maximum Rds On of 105 mOhm @ 1A, 4V.

  • Category: Discrete semiconductor products
  • Status: Obsolete (EOL)
  • For more information: Please contact the manufacturer
